Measurement range: ±16 g
Accuracy: ± 0.5 g
Resolution: 0.004 g
Frequency range: 0 ... 60 Hz
Memory: 8 Mbit
normal measuring mode: 168042 records
motion detection: 112028 records
Measurement rate / Record interval: 50 ms ... 12 hours
Power supply: 1 x 3.6 V, 1/2 AA, 14250, battery
Power consumption: ca. 2.8 mA during a measurement; <1.5 µA idle
Battery life: ca. 400 hours
Status display: via 2 LEDs (recording in progress / alarm)
Interface: USB
Operating conditions: 0 ... 40 ºC (32 ... 104 ºF), 10 ... 75 % RH non-condensing
Storage conditions: -10 ... 60 °C (14 ... 140 °F), 10 ... 90 % RH, non-condensing
Dimensions of device: 95 x 28 x 21 mm / 3.7 x 1.1 x 0.8"
Dimensions of wall bracket: 106 x 56 x 33.5 mm / 4.2 x 2.2 x 1.3"
Weight: 25 g / 0.88 oz
Delivery Scope:

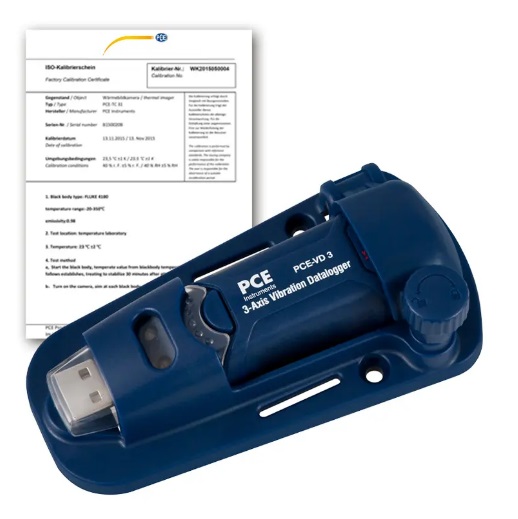

1 x PCE-VD 3-ICA vibration meter
1 x battery
1 x PC software
1 x bracket
2 x screws
1 x user manual
1 x ISO Calibration Certificate
