General technical data
Display type : LCD
Display size : 5 inch
Storage medium : Micro SD card
Storage capacity : 32 GB
Storage capacity (additional information) : max. 128 GB possible
Interface : HDMI, Micro-USB, AUX
Camera resolution : 1280 x 720
Camera orientation : frontal 0°
Operating time : 4 h
Length of camera probe : 2 m
Material camera probe : Wolfram braided
Movement of camera probe : 4-way
Camera probe protection class : IP67
Diameter of camera head : 6 mm
Field of view : 120 °
Field of view depth : 12 ... 200 mm
Bending angle : 220 °
Luminous intensity : 40000 lx
Fibre optic guide, rear LED
Cable type : flexible
Image / video format : JPEG, AVI, mp4
Pressure connection : Quick connection, max. permissible air pressure 4 bar
Menu language : German, English, Chinese, French, Spanish, Italian, Polish, Japanese, Russian, Ukrainian, Dutch, Korean
Protection class (device) : IP54
Power supply : 5 V DC
Plug type : Euro plug device
Weight : 1018 g
Dimensions (L x W x H) : 360 x 157 x 75 mm
Operating conditions : -10 ... 50 °C , 0 ... 90 % r.H
Storage conditions : -20 ... 60 °C , 0 ... 90 % r.H
Accumulator/battery : 1x 3.7 V , lithium-ion battery
Capacity : 3400 mAh
Delivery scope
1 x videoscope PCE-VE 260HT
1 x 32 GB micro SD card
1 x USB card reader
1 x mini tripod
1 x approx. 40 cm hose
1 x HDMI cable
1 x case
1 x USB power adapter 5 V, 3 A
1 x Micro-USB cable
1 x instruction manual

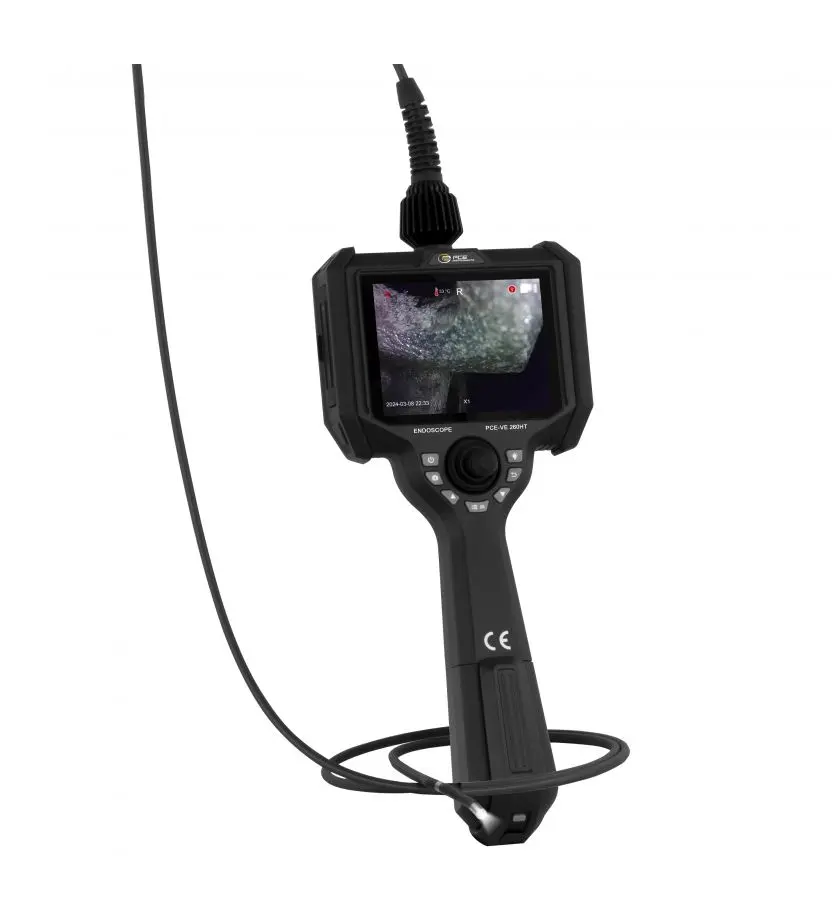

The videoscope offers an advanced solution for visual inspection in extreme environments with temperatures of up to 300 °C. With a specially developed high-temperature camera cable, it enables reliable image and video recording even under extreme conditions. The integrated connection on the camera cable for air cooling ensures effective cooling during use.
The detachable Li-ion battery enables flexible and mobile use of the videoscope without having to rely on an external power source. The 4-way camera head enables comprehensive monitoring and inspection from different angles. For optimum illumination in dark environments, the videoscope is equipped with LED lighting via fibre optics, which ensures uniform and intensive illumination. HDMI image transmission enables high-resolution live transmission of the inspection image to external monitors or recording devices.
For recording and storing inspection data, the videoscope has a 32 GB micro SD card memory, which offers sufficient space for extensive recordings. An audio recording can also be added to a video via the AUX input. The device allows user-defined notes and file names to be assigned in the menu. With these powerful features, the videoscope is the ideal solution for demanding inspection applications in hot and extreme environments.
