Vibration acceleration: 0 ... 200 m/s², RMS and Peak-Peak
Vibration velocity: 0 ... 200 mm/s, RMS
Vibration displacement: 0 ... 2000 μm, Peak-Peak
Accuracy vibration: ± 5%
Operating modes: Vibration, temperature, speed
Representable measured variables: Frequency; Vibration acceleration; Vibration velocity; Vibration; FFT spectrum
Units: Metric; Hz, mm/s², mm/s, μm, RPM, Hz
Interface: USB 2.0
Storage: 4GB micro SD card
Battery life: Up to 8 h continuous operation
Battery type: Lithium polymer
Display: 128 x 160 pixel color LCD
Environmental conditions: -10 ... 55°C / 14 ... 131°F; ≤ 80% RH not condensing
Dimensions: 132 x 70 x 33 mm / 5.2 x 2.8 x 1.3 in (L x W x D)
Weight: About 150 g / < 1 lb
Handset: must not be exposed to strong vibrations, magnetic fields, corrosive media or dust
-Technical data for the vibration sensor:
Sensitivity: 100 mV / g
Frequency response (± 3 dB): 0.5 ... 15,000 Hz
Frequency response (± 10%): 2.0 ... 10,000 Hz
Dynamic range: ± 50 g, peak
Power supply (IEPE): 18 ... 30V DC
Constant current source: 2 ... 10-mA
Spectral noise at 10 Hz: 14 μg / √Hz
Spectral noise at 100 Hz: 2.3 μg / √Hz
Spectral noise at 1000 Hz: 2 μg / √Hz
Output impedance: < 100 Ω
Bias voltage: 10 ... 14V DC
Housing insulation: > 100 MΩ
Environmental conditions: -50 ... 121 °C / -58 ... 249.8 °F
Maximum impact protection: 5000 g, peak
Resonant frequency: 23,000 Hz
Housing material: 316L stainless steel
Connection: 2 Pin MIL-C-5015
Protection: IP68
Weight: 90 g / < 1 lb
Delivery Scope:

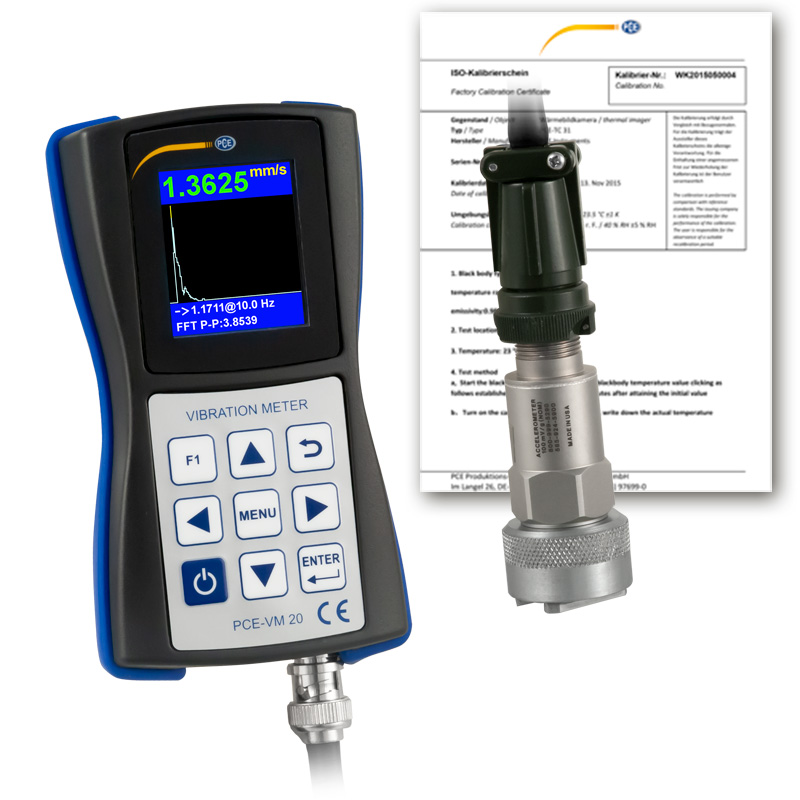

1 x Vibration analyzer PCE-VM 20-ICA
1 x Magn. Accelerometer with 1.8 m / 5.9 ft connection cable
1 x USB connection cable
1 x Charger 100 ... 240V AC
1 x PC software
1 x User manual
1 x ISO Calibration Certificate
