-Vibration measuring range:
Acceleration: 0.5 ... 199.9 m/s², 0.05 ... 20.39 g, 2 ... 656 ft/s²
Velocity or speed: 0.5 ... 199.9 mm/s, 0.05 ... 19.99 cm/s, 0.02 ... 7.87 in/s
Displacement (peak to peak / p-p): 0.005 ... 1.999 mm, 0.002 ... 0.078 in
-Resolution:
Acceleration: 0.1 m/s²
Velocity or speed: 0.1 mm/s
Displacement (p-p): 0.001 mm
-Accuracy:
Acceleration: ±5% ±2 digits
Velocity or speed: ±5% ±2 digits
Displacement (p-p): ±5% ±2 digits
-Frequency:
Hertz (Hz): 10 ... 1000 Hz
Kilohertz (kHz): 0.01 ... 1 kHz
-Revolutions per minute (RPM) measuring range:
Optical or noncontact: 10 ... 99999 RPM
Mechanical or contact: 0.5 ... 19999 RPM
Velocity or speed: 0.05 ... 1999 m/min, 0.2 ... 6560 ft/min
- Resolution:
0.1 RPM<1000 RPM
1 RPM≥1000 RPM
0.01 m/min<100 m/min
0.1 m/min≥100 m/min
0.1 ft/min<1000 ft/min
1 ft/min≥1000 ft/min
Accuracy±0.05% ±1 digit
Optical measuring distance: 50 ... 1500 mm / 2 .... 59 in (depending on surface)
-General properties:
Internal memory: Stores up to 1000 readings
Data output: RS-232 port
LCD: 45 x 48 mm / 1.77 x 1.88 in
Power supply: 4 x 1.5V AA batteries
Dimensions: 188 x 76 x 47 mm / 7.4 x 3.0 x 1.9 in
Operating conditions: 0 ... 50ºC / 32 ... 122°F / <80% RH
Weight: 400 g / < 1 lb
Enclosure: Plastic
Delivery Scope:

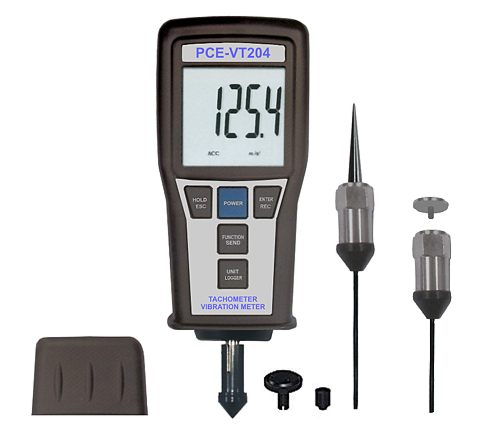

1 x PCE-VT 204 condition monitoring vibration meter
1 x Flat sensor with 1.5 m / .06 in cable
1 x 70 mm / 2.8 in needle sensor
1 x Magnetic base
1 x Mechanical wheel sensor
1 x 600 mm / 23 in of reflective tape
1 x Carrying case
4 x Batteries
1 x User manual
