Direct access to our certified experts
-Force Test Stand:
Force range: 500 N / 50 kg / 110 lb
Distance display resolution: 0.02 mm
Travel path: 270 mm / 10.6"
Speed: 1 ... 500 mm/min
Resolution: 1 mm/min
Speed accuracy: 2 %
Power supply: 220 ... 240 V AC, 1.5 A
Fuse: 2 A
Ambient conditions: 20 °C ±10 °C, 15 ... 80 % RH
Dimensions: 45 x 26 x 68 cm / 17.7 x 10.2 x 26.7"
Weight: 35 kg / 77 lb
Measuring range: 0 ... 500 N
Accuracy: ± 0.1% of the measuring range
Resolution: 0.1 N
-Force Gauge:
Measurement units: N, kg, lb, KPa
Display: 2.8" TFT graphic display
Alarm Modes: Inside, Outside, Crack, Shutdown
Sampling rate: 6 ... 1600 Hz
Storage: 100 measurements
power supply: NiMh battery 6V / 1600-mAh
Battery life: about 10 hours
Charging adapter: 12V / 1A
Outputs:
Interface: USB
Switching output: 12 V / 50-mA
Protection class: IP 54
Operating and storage conditions: -10 ... 50°C / 14 ... 122°F; 5 ... 95% rh non-condensing
Force-receiving piece: 6 x 7 mm / .2 x .3 in
Dimensions: 200 x 97 x 42 mm / 7.9 x 3.8 x 1.7 in
Weight: 540 g / 1.2 lbs

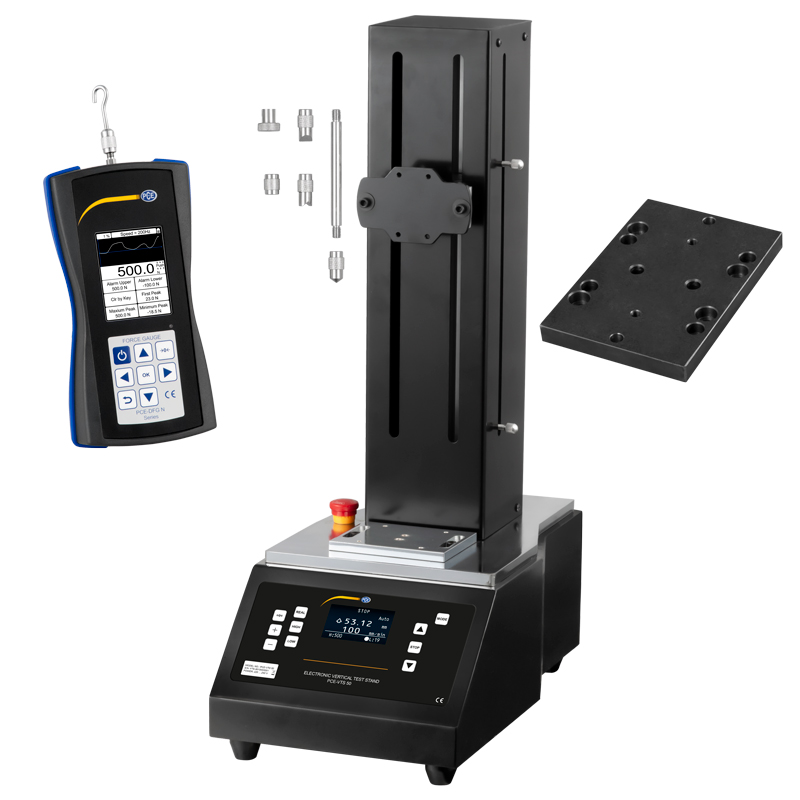

Delivery Scope:
1 x Motorized Force Test Stand PCE-VTS 50
1 x Force Gauge PCE-DFG N 500
2 x User manual
1 x Chisel head adapter
1 x Flat head adapter
1 x Pointed head adapter
1 x Hook adapter
1 x Notch head adapter
1 x Extension rod (90 mm)
1 x PC software
1 x USB data cable
1 x Mains power adapter
1 x Carrying case
