Measuring range: 0 ... 500 N
Resolution: 0.1 N
Accuracy: ±0.3 % of the measuring range
Measurement units: N, kgF, lbF
Display: 1.8" graphic display
Alarm modes: Below, Inside, Outside
Sampling rate: 500 Hz
Memory: 100 measurements
Power supply: lithium battery 3.7 V / 1500 mAh
Battery life: up to 36 hours
Power supply / USB charging adapter: 5 V / 1 A
Outputs
interface: USB B
Switching output / alarm modes: MD6 with 2.85 V if active
Protection class: IP 54
Operating and storage conditions: 5 ... 45 °C; 35 ... 65 % r.H. not condensing
Force application: M6 x 10 mm thread
Dimensions: 189 x 707 x 34 mm
Weight: 450 g
-Force Test Stand:
Force range: 500 N / 50 kg / 110 lb
Distance display resolution: 0.02 mm
Travel path: 270 mm / 10.6"
Speed: 1 ... 500 mm/min
Resolution: 1 mm/min
Speed accuracy: 2 %
Power supply: 220 ... 240 V AC, 1.5 A
Fuse: 2 A
Ambient conditions: 20 °C ±10 °C, 15 ... 80 % RH
Dimensions: 45 x 26 x 68 cm / 17.7 x 10.2 x 26.7"
Weight: 35 kg / 77 lb
Delivery Scope:

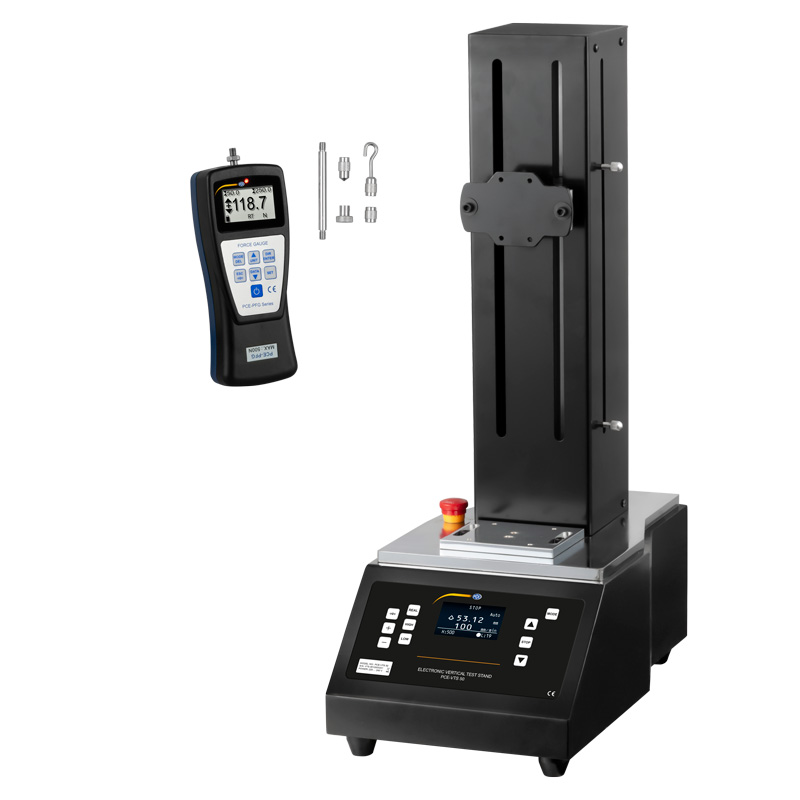

1 x Force Gauge PCE-PFG 500
1 x Flat head adapter Ø13 mm
1 x Pointed head adapter
1 x Hook adapter
1 x Extension rod (75 mm)
1 x USB cable
1 x USB charger
1 x Plastic carrying case
1 x Vertical Force Test Stand PCE-VTS 50
1 x Pulse cable for PCE-PFG series (version 1.0.3 or higher)
4 x Rubber feet
2 x Allen keys
1 x Power cable
1 x Instruction manual
