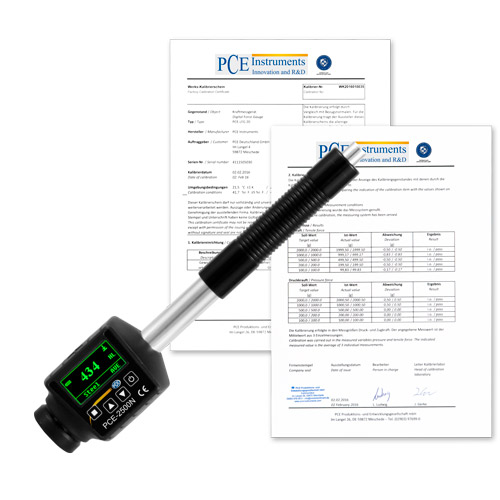

PCE 2500N-ICA Hardness Tester for Metals with ISO Certificate

Specification

Measuring ranges:

HLD: 170 ... 960

HRC: 17.9 ... 69.5

HB: 19 ... 683

HV: 80 ... 1042

HS: 30.6 ... 102.6

HRA: 59.1 .. 88

HRB: 3.5 ... 101.7

Measurement accuracy: HLD: ± 0.5%

Measuring principle:Rebound method

Impact device:Type D striker

Display:128 x 64 OLED

Repeatability:HLD: ± 0.8%

Hardness max.:1042 HV

Measurement units:HLD, HRC, HB, HV, HS, HRA, HRB

Running time:Approx. 10 hours of continuous use at full charge

Power supply:Rechargeable Li-ion battery

Storage conditions:-30 ... 60°C / -22 ... 140°F, <90% RH

Operating conditions:-10 ... 50°C / 14 ... 122°F, <90% RH

Dimensions:148 x 32 x 25 mm / 5.83 x 1.26 x 0.99 in

Limit alarm:Yes

Automatic shutdown: Yes

Weight:650 g / 1.44 lbs

Measuring ranges on various material surfaces

Steel:

HRC: 17.9 ... 68.5

HRB: 59.6 ... 99.6

HRA: 59.1 ... 85.8

HB: 127 ... 651

HV: 83 ... 976

HS: 32 , 2 ... 99.5

Tool steel:

HRC: 17.9 ... 68.5

HRB: 59.6 ... 99.6

HRA: 59.1 ... 85.8

HB: 127 ... 651

HV: 83 ... 976

HS: 32 , 2 ... 99.5

Stainless steel:

HRB: 46.5 ... 101.7

HB: 85 ... 655

HV: 85 ... 802

Cast iron:

HB: 93 ... 334

BrassHRB: 13.5 ... 95.3

HB: 40 ... 173

BronzeHB: 60 ... 290

CopperHB: 45 ... 315

Delivery contents

1 x PCE-2500N hardness tester for metals

1 x Charging cable

1 x Test block

1 x Cleaning brush

1 x ISO calibration certificate

1 x User manual

1 x Carrying case
