Specification
Measurement method:According to Leeb
Impactor:DL
Measuring range:
HLD: 170 ... 960
HRC: 17.9 ... 69.5
HB: 19 ... 683
HV: 80 ... 1042
HS: 30.6 ... 102.6
HRA: 59.1 ... 88
HRB: 3.5 ... 101.7
Measurement accuracy: HLD: ± 0.5%
Maximum hardness:1042 HV
Striker:Type D
Display: 128 x 64 mm / 5 x 2.5 in OLED
Repeatability:HLD: ± 0.8%
Hardness max.:1042 HV
Measurement units:HLD, HRC, HB, HV, HS, HRA, HRB
Display:15 mm / 0.59 in
Material: Steel; Cast steel; Alloy tool steel; Stainless steel; Cast iron; Nodular cast iron parts; Cast aluminum alloy; Brass; Bronze; Tin bronze
Measuring ranges on different material surfaces
Material
Steel:
HRC: 17.9 ... 68.5
HRB: 59.6 ... 99.6
HRA: 59.1 ... 85.8
HB: 127 ... 651
HV: 83 ... 976
HS: 32.2 ... 99.5
Tool steel:
HRC: 17.9 ... 68.5
HRB: 59.6 ... 99.6
HRA: 59.1 ... 85.8
HB: 127 ... 651
HV: 83 ... 976
HS: 32.2 ... 99.5
Stainless steel:
HRB: 46.5 ... 101.7
HB: 85 ... 655
HV: 85 ... 802
Cast iron:
HB: 93 ... 334
Brass:
HRB: 13.5 ... 95.3
HB: 40 ... 173
Bronze:HB: 60 ... 209
CopperHB: 45 ... 315
Battery life:ca. 10 h
Power supply:Polymer Li-ion battery, 3.7V
Interface:USB 2.0
Dimensions:205 x 32 x 25 mm / 8 x 1.3 x 1 in
Weight:650 g / 1.4 lbs
Display:128 x 64 mm / 5 x 2.5 in OLED
Opearting conditions:-10 ... 50°C / 14 ... 122°F , <90% r.H.
Storage conditions:-30 ... 60°C / -22 ... 140°F, <90% r.H.
Delivery contents

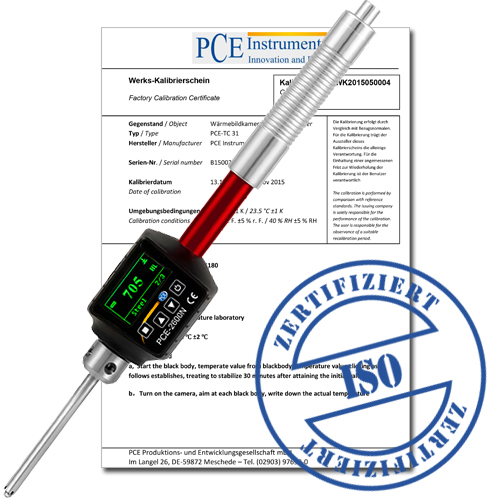

1 x Hardness Tester PCE-2600N-ICA
1 x Impactor
1 x Calibration block
1 x Cleaning brush
1 x ISO calibration certificate
1 x Carrying case
1 x Operation manual
