Specification
Measuring range: 22 ... 136 db(A)
Accuracy: Class 1
Frequency range: 3 Hz ... 20 kHz
Standards
GB/T3785.1-2010
GB/T3785.2-2010
IEC60651:1979
IEC60804:2000
IEC61672-1:2013
ANSI S1.4-1983
ANSI S1.43-1997
Frequency analysis
1/1 Octave band filter: 8 Hz ... 16 kHz
1/3 Octave band filter: 6.3 Hz ... 20 kHz
Microphone
1/2"
Microphone Class: 1
Sensitivity: 40 mV/PA
Frequency range: 3 Hz ... 20 kHz
Connection: TNC
Power supply: ICCP Standard
Data-logging interval: 1 s ... 24 h (adjustable)
Measuring functions: LXY (SPL), LXeq, LXYSD, LXSEL, LXE, LXYmax, LXYmin, LXPeak, LXN
X = Frequency weighting: A, B, C, Z
Y = Time weighting: F, S, I
N = Statistics in %: 1 ... 99 %
Frequency weightings: A, B, C, Z
Time weightings: Fast (F) 125ms, Slow (S) 1 sec, Impulse (I) 35 ms
Inherent noise
Microphone: 19 db(A), 25 db(C), 31 db(Z)
Electronics: 13 db(A), 17 db(C), 24 db(Z)
AD converter: 24 Bit
Sample rate
Standard: 48 kHz
LN Mode: 20 ms
Measuring display: Numerical; Bar graph; Graphical
Display: 160 x 160 pixel LCD with backlight
Memory: 4 GB Micro SD card
Interface: USB (Memory readable via software or directly as mass storage)
RS-232
Voltage output: AC 5V RMS; DC 10 mV/db
Alarm: Adjustable
GPS:Yes, GPS receiver for location determination
Power supply:
4 x 1.5 V AA Batteries
12 V / 1 A Power plug
5 V / 1 A USB
Battery life: Min. 10 h continuous use
Dimensions: 70 x 300 x 36 mm / 2.76 x 11.81 x 1.42" (W x H x D)
Weight: Approx. 620 g / 1.4 lbs incl. batteries
Delivery contents

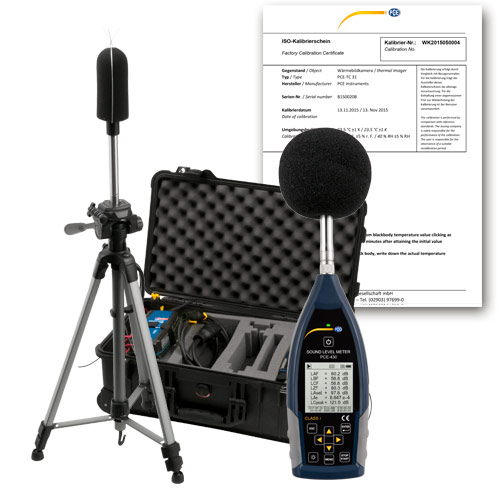

1 x Noise Dose Meter PCE-430-EKIT incl. Outdoor Noise Level Meter Kit
1 x 1/2" measurement microphone class 1
1 x Wind noise suppression (foam ball)
1 x USB interface cable
1 x Software
1 x Power adapter
1 x Suitcase
1 x User manual
1 x ISO calibration certificate
1 x Outdoor Noise Level Meter Kit PCE-4xx-EKIT
1 x Waterproof PELI transport case
1 x Wind and rain protection for microphone of the PCE-4xx series
1 x Charger for internal batteries
2 x 12 V lead gel batteries
1 x Tripod
1 x 2 m / 6ft 6" microphone cable
1 x Connection cable for power supply (optional Schuko or US connection)
