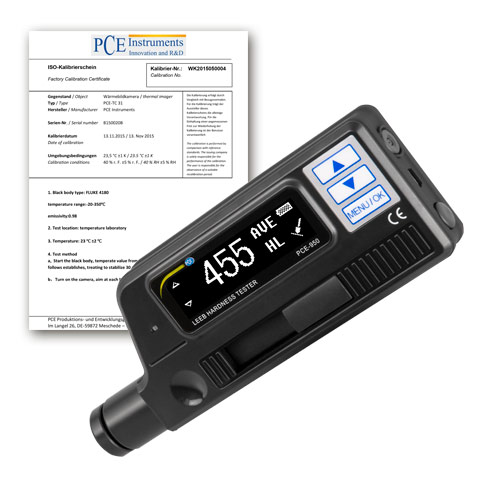

PCE 950-ICA Metal Hardness Tester with ISO Certificate

Specification

Hardness measuring range by material

Cast steel

HRC: 19.8 ... 68.5

HRB: 59.6 ... 99.6

HRA: 59.1 ... 85.8

HB: 80 ... 651

HV: 83 ... 976

HS: 32.2 ... 115

Hammered steel:HB: 143 ... 650

Cold-rolled steel:

HRC: 20.4 ... 67.1

HV: 80 ... 898

Stainless steelHRB: 45.5 ... 101.7

HB: 85 ... 655

HV: 85 ... 802

Cast iron:HB: 93 ... 334

Ductile iron

HB: 131 ... 387

Aluminum alloyHRB: 23.8 ... 84.6

HB: 19 ... 164

Brass:

HRB: 13.5 ... 95.3

HB: 40 ... 173

Bronze:HB: 60 ... 290

Forged copper alloy:HB: 45 ... 315

Accuracy:± 6 HL at 730 ... 790 HL; ± 10 HL at 490 ... 570 HL

Repeatability:6 HL at 730 ... 790 HL; 10 HL at 490 ... 570 HL

Total measuring range:170 ... 960 HL

Hardness scalesHL (HLD):

Leeb (Type D impact device)

HB: Brinell

HRC: Rockwell C

HRB: Rockwell B

HRA: Rockwell A

HV: Vickers

HS: Shore

Impact device:Type D

Measuring direction:360°

Display:128 x 32 OLED

Data storage:Internal memory saves up to 600 readings

Power supply:Built-in rechargeable Li-ion battery

Battery life:Approx. 50 hours

Data interface:Mini USB

Dimensions:Approx. 153 x 54 x 24 mm / 6.02 x 2.13 x 0.95 in

Weight:Approx. 250 g / < 1 lb

Delivery contents

1 x Hardness tester PCE-950

1 x Brush

1 x Miniature adapter

1 x USB cable

1 x Power supply

1 x Test block

1 x User manual

1 x Carrying case

1 x ISO calibration certificate
