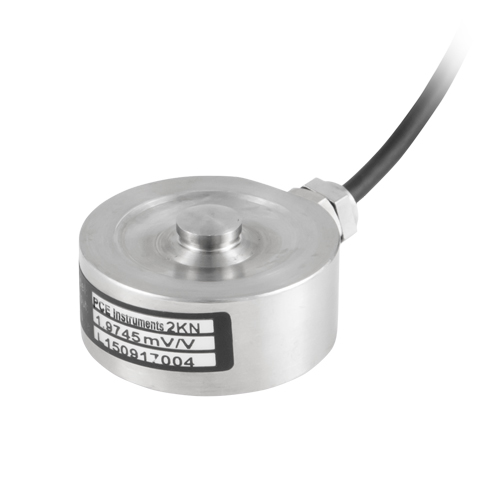

Manufacturer: PCE-ANH
Model : PCE-C-R19LFC-H9
Warranty : 12 months
Specification
Rated load / force F.S.:
5 / 10 / 20 / 50 / 100 / 200 / 500 kg
50 / 100 / 200 / 500 / 1000 / 2000 / 5000 N
! Rated load / force selectable !
Limit load / force:120 %
Breaking load / force:150 %
Rated output:1.0 – 1.5 mV/V
Operating range of supply voltage:2.5 V – 5 V
Maximum supply voltage:5 V
Deviations of the zero signal:± 2 % F.S.
Linearity deviation:0.5 % F.S.
Reverse voltage (hysteresis):0.5 % F.S.
Repeatability:0.5 % F.S.
Stress creep (30 min):0.1 % F.S.
Input resistance:350 ± 10 Ω
Output resistance:350 ± 3 Ω
Insulation resistance:≥5000 MΩ / 100 VDC
Nominal range of ambient temperature:-10 … 60 °C / 14 ... 140 °F
Service temperature range:-20 … 80 °C / -4 ... 176 °F
Temperature coefficient of characteristic value:0.1 % F.S. / 10 °C
Temperature coefficient of zero point:0.1 % F.S. / 10 °C
Sensor cable:Ø 2 x 3 m / (ends open)
Cable assignment:
EXC+ = red
EXC- = black
SIG+ = green
SIG- = white
GND = yellow
Material / measuring body:stainless steel
Protection:IP65
