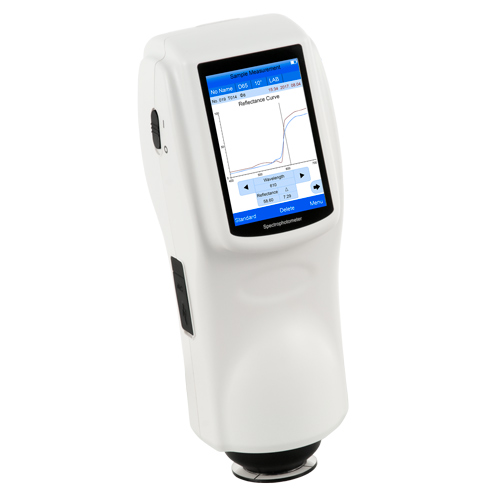

PCE CSM 10 Color Meter

Measuring geometry:8°/d

Measuring aperture:Diameter 8 mm

Integrating sphere:Diameter 58 mm

Sensor:Silicon photoelectric diode

Wavelength range:400 ... 700 nm

Reflection factor range:0 ... 200 %

Colour spaces:CIE L*A*B, XYZ, Yxy, LCh, CIE LUV, HunterLAB

Colour index:ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*cmc(l:c), CIE2000, ΔE*00, ΔE(h)

Chromacity data:WI (ASTM E313, CIE/ISO, AATCC, Hunter)

YI (ASTM D1925, ASTM E313)

TI (ASTM E313, CIE/ISO)

Metamerism Index Mt

colour stain, colour fastness

Observation angle:2° / 10°

Measuring time:1.2 seconds

Light source:D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12(TL83/U30)

Light source device:combined LED

Repeatability:SPectral reflection: standard deviation ~ 0.1 % (400...700 nm: within ~0.2 %)

colorimetric value: standard deviation: within ΔE*ab 0.04

Error between each equipmentwithin ΔE*ab 0.02

Display functions:Spectral value/graph, colorimetric value, colour difference (value/graph), PASS/FAIL result, colour offset, colour simulation, colour index settings (ΔE*94, ΔE*cmc, ΔE*2000), error limit settings, time settings, language settings, restore factory settings

Display:3.5" TFT touch screen

Interface:USB / RS-232

Storage:1,000 reference values, 15,000 samples

Power supply:Rechargeable lithium-ion battery

3.7 V at 3,200 mAh

Life of light source:5 years, > 1.6 million measurements

Operating conditions:0 ... +40 °C

Storage conditions:-20 ... +50 °C

Dimensions:90 x 77 x 230 mm

Weight:600 g

Delivery Scope

1 x Colorimeter PCE-CSM 10,

1 x Aluminium carrying case

1 x AC Mains adapter

1 x Lithium-ion battery

1 x Calibration plate (white)

1 x Calibration plate (black)

1 x Protective cover

1 x USB cable

1 x Wrist band

1 x PC software

1 x Instruction manual
