Specifications
Measuring geometry: 8° / d
Size of integrated sphere:48 mm / 1.9 in
Light source:LED lighting system
Spectrophotometric operation:Concave grating
Sensor:256 pixels CMOS image sensor
Wavelength range:400 ... 700 nm
Wavelength interval:10 nm
Measured reflection range:0 ... 200%
Measuring aperture:
Double iris: 10 mm (0.4") / 8 mm (0.3") and 5 mm (0.2") / 4 mm (0.15")
Specular component:SCI, SCE
Color ranges:CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB
Formulas for color inequality:ΔE * ab, ΔE * uv, ΔE * 94, ΔE * cmc (2: 1), ΔE * cmc (1: 1), ΔE * 00, ΔE (Hunter)
Light Sources:D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12
Viewing angle:2° / 10°
Data displaySpectrogram values, color values samples, color difference values / graph, pass / fail result, color balance
Measuring time:2.6 seconds
Repeatability:MAV / SCI: ΔE * ≤0.03
Device error:MAV / SCI: ΔE * ≤0.15
Measurement mode:Single measurement, average value measurement
Location method:Finding the measuring points by camera
Power supply:Built-in Li-ion battery
Dimensions:184 x 77 x 105 mm / 7.2 x 3 x 4.1 in
Mass:600 g / 1.3 lbs
Luminous life:5 years / more than 3 million measurements
Display:3.5 in TFT color LCD, capacitive touch screen
Data InterfaceUSB, Bluetooth 4.0
Data storage:2000 standards, 20000 samples
Menu languages:English, Chinese
Operating conditions:0 ... 40°C / 32 ... 104°F
0 ... 85% relative humidity (non-condensing)
Storage conditions:-20 ... 50°C / -4 ... 122°F
0 ... 85% relative humidity (non-condensing)
Dilivery Contents

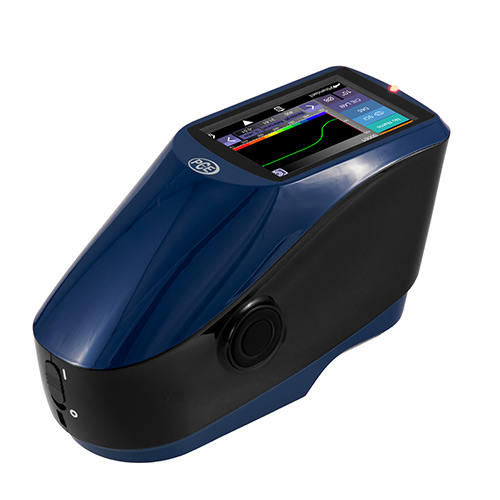

1 x Color meter PCE-CSM 22
1 x LI-ion battery (installed)
1 x Calibration standard (white and black)
1 x Charging adapter
1 x Dust cover
1 x USB cable
1 x Factory calibration certificate
1 x CD-Rom with software
1 x Cleaning cloth
1 x USB dongle (depending on model)
1 x User manual
