Specifications
Measuring geometry:8°/d
Measuring aperture:Diameter 8 mm
Sensor:Silicon photoelectric diode
Color spaces:CIE L*a*b*C*h, CIE L*a*b*
Color difference formular:ΔE*ab, ΔL*a*b, ΔE*C*h
Errors between each equipment:≤0.50 ΔE*ab
Standard deviation:within ΔE*ab 0.08
Repeatability:average of 30 measurements of standard white plate
Light source:D65
Storage:100 reference values, 20,000 samples
Interface:USB
Power supply:Rechargeable lithium-ion battery; 3.7 V @ 3,200 mAh
Charging time:2 h (8 h at first use)
Battery life:> 3,000 measurements
Lamp life:3 years, more than 1 million measurements
Operating conditions:0 ... +40 °C / 32 ... +104 °F; 0 ... 85 % RH
Dimensions:200 x 70 x 100 mm / 7.8 x 2.7 x 3.9 in
Weight:500 g / 17.6 oz
Dilivery Contents

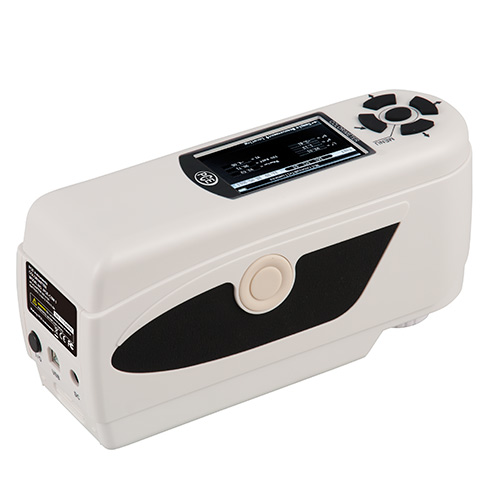

1 x Color meter PCE-CSM 3
1 x Lithium-ion battery
1 x Mains adapter
1 x Calibration plate (white)
1 x PC software
1 x Instruction manual
