Specifications
Measurement range:0 to 5000 µm / 200 mils
Measurement values:
from 0.0 ... 999 µm / from 1.00 mm ... 5.00 mm
0.0 mils ... 40 mils / 0.04 in ... 0.2 in
Measuring on:only ferrous
Resolution:
0.1 µm in the range 0.0 ... 99.9 µm
1 µm in the range 100 ... 999 µm
0.01 mm in the range 1.00 ... 5.00 mm
respectively
0.01 mils in the range 0.00 ... 9.99 mils
0.1 mils in the range 10.0 ... 99.0 mils
1.0 in the range 100 ... 200 mils
Accuracy of repeat measurements:
±(1 µm +2 %) of 0 µm ... 999 µm / 40 mils
±3.5 % of 1001 µm ... 5000 µm / 40 mils ... 200 mils
Minimum area of measurement:10 mm x 10 mm / 0.4 in x 0.4 in
Minimal radial curvature:convex: 5 mm / 0.2 in; concave: 30 mm / 1.2 in
Minimum base material thickness:type F: 0.2 mm / 0.001 in; type N: 0.05 mm / 0.002 in
Display:LCD with 4 digits
Operating temperature:0° C ... 60° C / 32° F ... 140° F
Power:9 V battery (included)
Dimensions:118 mm x 58 mm x 38 mm; 4.6 in x 2.3 in x 1.5 in
Weight:150 g / 0.33 lbs with battery
Dilivery Contents

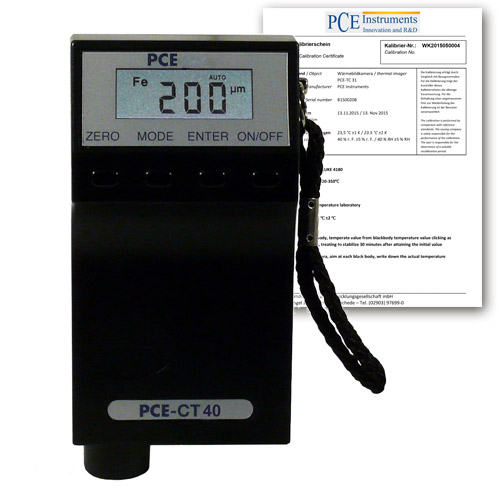

1 x PCE-CT 40 Automotive Tester - Coating Thickness Gauge
1 x set of calibration standards
1 x carrying case
1 x 9 V battery
1 x user manual
1 x ISO calibration certificate
