Specifications
Measurement range:0 ... 5000 µm; 0 ... 200 mils (selectable)
Measurement values:0.0 µm ... 999 µm / 0 mils ... 40 mils; 1.00 mm ... 5.00 mm / 0.04 in x 0.20 in
Measuring on:only non-ferrous metals
Resolution:0.1 µm (0.0 µm ... 99.9 µm); 1 µm (100 µm ... 999 µm); 0.01 mm (1.00 mm ... 5.00 mm)
respectively
0.01 mils (0.00 mils ... 9.99 mils); 0.1 mils (10.0 mils ... 99.0 mils); 1.0 (100 mils ... 200 mils)
Accuracy of repeat measurements:±(1 µm / 0.04 mils +2 %) of 0 µm ... 999 µm / 40 mils
±3.5 % of 1001 µm ... 5000 µm / 40 mils ... 200 mils
Minimum area of measurement:10 mm x 10 mm / 0.4 in x 0.4 in
Minimal radial curvature:convex: 5 mm / 0.2 in; concave: 30 mm / 1.2 in
Minimum base material thickness:
type F: 0.2 mm / 0.008 in
type N: 0.05 mm / 0.002 in
Display:LCD with 4 digits
Operating temperature:0° C ... 60° C / 32° F ... 140° F
Power:9 V battery (included)
Dimensions:118 mm x 58 mm x 38 mm; 4.6 in x 2.3 in x 1.5 in
Weight:150 g / 0.33 lbs with battery
Dilivery Contents

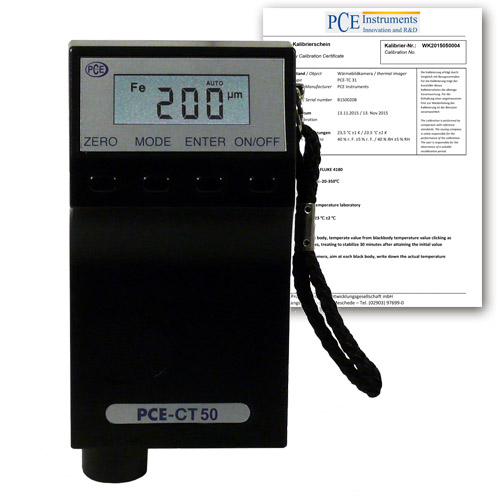

1 x PCE-CT 50 Automotive Tester - Coating Thickness Gauge
1 x set of calibration standards
1 x carrying case
1 x 9 V battery
1 x user manual
1 x ISO calibration certificate
