Specification
Probe: Type F and Type N
Measuring range Type F:0 ... 5000 μm / 0 ... 5 mm / 0 ... 196 mils
Measuring accuracy Type F:± (2% + 1 μm)
Resolution Type F:0 ... 99.9 μm: 0.1 μm, 100 ... 999 μm: 1 μm
> 1000 μm: 0.01 mm
Measuring principle Type F:Magnetic induction
Smallest thickness of the base material:0.02 mm
Measuring range Type N:0 ... 3000 μm / 0 ... 3 mm / 0 ... 118 mils
Measuring accuracy Type N:± (2% + 1 μm)
Resolution Type N:0 ... 99.9 μm: 0.1 μm, 100 ... 999 μm: 1 μm
> 1000 μm: 0.01 mm
Measuring principle Type N:Eddy current
Smallest thickness of the base material:0.05 mm
Calibration:One-point to four-point calibration, zero calibration
Data storage:Direct measurement (no measurement data storage), four data groups (automatic measurement data storage of up to 2000 measured values)
Statistical functions:Number of measurements, average, minimum, maximum, standard deviation
Measurement units:μm, mm, mils
Alarm:Alarm limits adjustable, alarm symbol is displayed when limits are exceeded
Minimum radius of curvature (convex):5 mm / 0.2 in
Minimum radius of curvature (concave):25 mm / 1 in
Smallest measuring surface:Diameter of 20 mm / 0.8 in
Maximum measuring rate:2 x per second
Data interface:Data transfer via USB
Power supply:2 x 1.5V AAA batteries
Menu languages:German, English, Russian, Chinese
Operating conditions:0 ... 50°C / 32 ... 122°F, 20 ... 90% RH
Storage conditions:-10 ... 60°C / 14 ... 140°F
Standards:CE ROHS FCC
Dimensions:110 x 53 x 24 mm / 4.33 x 2.09 x 0.95 in
Material housing:ABS plastic
Weight:92 g / < 1 lb
Delivery contents

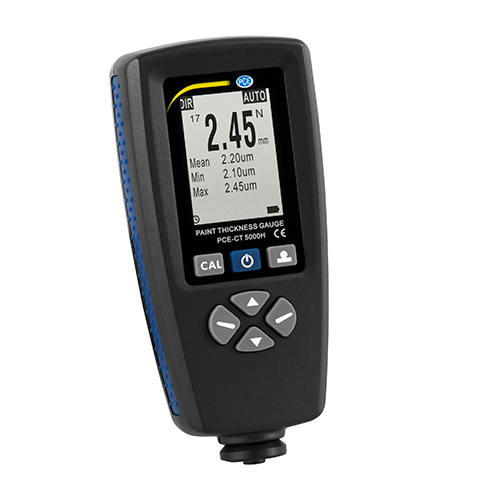

1 x PCE-CT 5000H material coating thickness meter
2 x Zero calibration plates (ferrous and non-ferrous)
5 x Calibration plates
2 x 1.5V AAA batteries
1 x USB cable
1 x PC-compatible software
1 x User manual
1 x Carrying case
