Specifications
Ferrous metals
Principle:Magnetic induction
Measuring range:0 ... 1350 µm / 0 ... 53.1 mils
Accuracy
0 ... 1000 µm: ±(2.5 % ±2 µm)
1000 µm ... 1350 µm: ±3.5 %
0 ... 39.3 mils: ±(2 % ±0.08 mils)
39.3 mils ... 53.1 mils: ±3.5 %
Resolution
0 ... 100 µm: 0.1 µm
100 µm ... 1000 µm: 1 µm
in 1000 mm ... 1350 µm: 0.01 mm
0 ... 10 mils: 0.01 mils
10 mils ... 53.1 mils: 0 ... 1 mils
Smallest surface:Ø 7 mm / Ø 0.3 in
Min. curvature radius:1.5 mm / 0.05 in
Min. substrate thickness:0.5 mm / 0.02 in
Non-ferrous metals
Principle:Eddy current
Measuring range:0 ... 1350 µm / 0 ... 53.1 mils
Accuracy
0 ... 1000 µm: ±(2.5 % ±2 µm)
1000 µm ... 1350 µm: ±3.5 %
0 ... 39.3 mils: ±(2 % ±0.08 mils)
39.3 mils ... 53.1 mils: ±3.5 %
Resolution:0 ... 100 µm: 0.1 .mu.m
100 µm ... 1000 µm: 1 µm
in 1000 mm ... 1350 µm: 0.01 mm
0 ... 10 mils: 0.01 mils
10 mils ... 53.1 mils: 0 ... 1 mils
Smallest surface:Ø 5 mm / Ø 0.2 in
Min. curvature radius:3 mm / 0.1 in
Min. substrate thickness:0.3 mm / 0.01 in
Units:µm, mils
Functions:Alarm function, display lighting, automatic shutdown, calibration, memory function
Memory option:30 storage groups with a capacity of 50 measurements each = 1500 measurements total
Interface:USB
Environmental conditions:0 ... +40° C / 32° F ... 104° F / 20 % ... 90 % rh
Power supply:2 x 1.5 V AAA batteries
Dilivery Contents

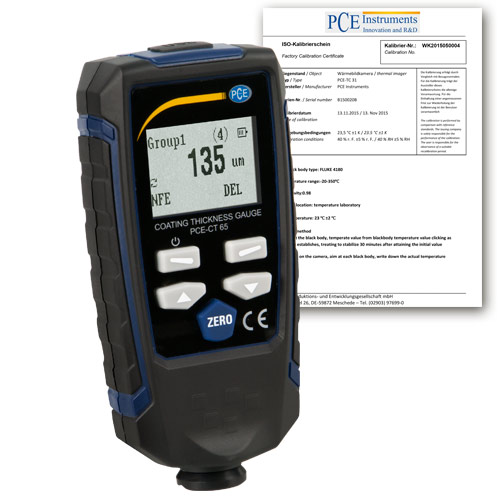

1 x PCE-CT 65 coating thickness gauge
2 x 1.5 V AAA batteries
2 x calibration plates (aluminum and iron)
1 x USB cable
1 x user manual
1 x carrying case
1 x ISO calibration certificate
