Specifications
AC current (50/60 Hz):
Sector / resolution / accuracy; 200 A / 100-mA / ±3.0% + 8 digits
DC current:
Sector / resolution / accuracy
200 A / 100-mA / ±2.8% + 8 digits
AC test voltage (without contact):100 VAC ... 600 VAC 50 / 60 Hz
Frequency:
Sector / resolution / accuracy
40 ... 50 Hz / 0.01 Hz / ±1.2% + 5 digits
51 ... 510 Hz / 0.1 Hz / ±1.2% + 3 digits
0.51 ... 1 kHz / 0.001 kHz / ±1.2% + 3 digits
Illumination of the measurement area:white LEDs
Diameter of the conductor:Max. 18 mm / .7 in
Display:With white LEDs, backlit LCD with 3 2/3 positions
Power:2 AA batteries
Enclosure:PVC
Dimensions:155 x 66 x 31 mm / 6.1 x 2.6 x 1.2 in
Weight:155 g / < 1 lb
Dilivery Contents

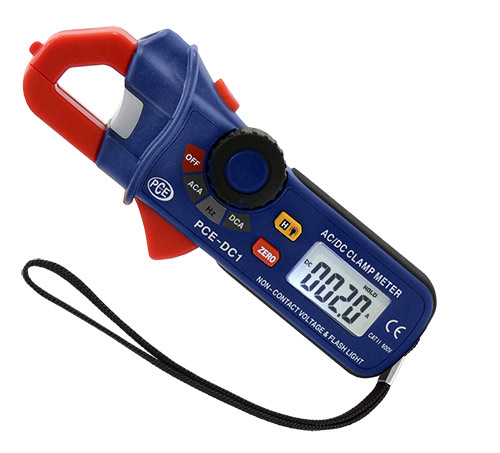

1 x PCE-DC1 Mini Clamp Meter
1 x Bag
2 x Batteries
1 x User's manual
