Technical Specifications
Measuring range: 0 ... 500 N
Resolution: 0,05 N
Measuring insecurity: ±0,1 % F.S. (of measuring range)
Measuring unit: N, gf, kgf, ozf, kg, lbf, mN
max. overcharge: ±150 % F.S. (LCD flashed at 110% F.S.)
Display: 160 x 128 dot matrix LCD with LED backgroung lighting
temperature effect: <0.03 % F.S./K
measurement modes: Peak, Auto Peak, Track
sampling rate: 2000 Hz
storage rate: device max. 1 Hz / PC software approx. 60 Hz
software and data cable: incl. Software for evaluation and open loop control
display update: 10 x per second
internal memory: 1000 values
interface: USB, RS-232
Environmental condition:
in use:
-10°C ... 40°C / 20% ... 80% r.h.
storage:
-20°C ... 50°C / 5% ... 90% r.h.
Power supply: Ni-MH rechargeable battery
Battery current time:approx. 16 hours
dimension: approx. 184 x 94 x 35 mm
weight:approx. 1.00 kg
Delivery Scope:

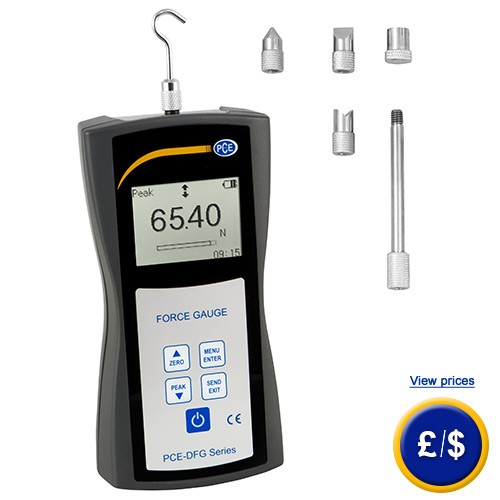

1 x Digital Force Gauge PCE-DFG 500
1 x chisel head adapter
1 x flat head adapter
1 x point head adapter
1 x hook adapter
1 x ball head adapter
1 x connecting bar (90 mm)
1 x software
1 x USB data cable
1 x power supply
1 x carrying case
1 x manual
