Specification
Measuring range:0 ... 1,000 N / 0 ... 225 lbs
Resolution:0.5 N / 0.11 lbs
Accuracy:± 0.1% of the measuring range
Measurement units:N, kg, lb, KPa
Display:2.8" TFT graphic display
Alarm Modes:Inside, Outside, Crack, Shutdown
Sampling rate:6 ... 1600 Hz
Storage:100 measurements
Power supply:NiMH battery, 6V / 1600-mAh
Battery life:About 10 hours
Power adapter / charging adapter:12V / 1A
OutputsInterface: USB
Switching output: 12V / 50-mA
Protection class:IP 54
Operating and storage conditions:-10 ... 50°C / 14 ... 122°F; 5 ... 95% rh non-condensing
Dimensions:200 x 97 x 42 mm / 7.9 x 3.8 x 1.7
Weight:540 g / 1.2 lbs

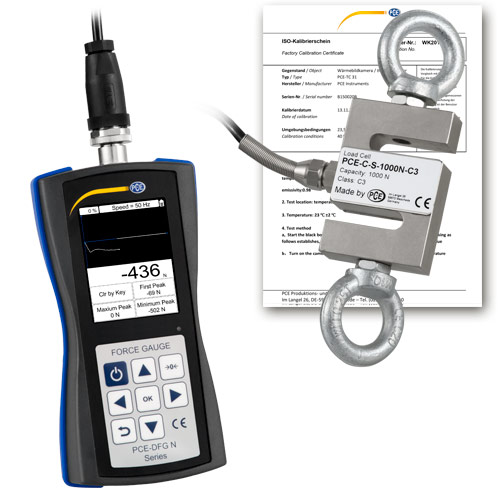

Delivery contents
1 x PCE-DFG N 1K
1 x Load cell (depending on model)
2 x Eyebolt
1 x USB cable
1 x Charger
1 x PC software
1 x User manual
1 x Calibration certificate
