Specification
Measuring range:0 ... 500 N or 0 ... 112 pounds
Accuracy:± 0.1% of the measuring range
Resolution:0.1 N
Measurement units:N, kg, lb, KPa
Display:2.8" TFT graphic display
Alarm Modes:Inside, Outside, Crack, Shutdown
Sampling rate:6 ... 1600 Hz
Storage:100 measurements
power supply:NiMh battery 6V / 1600-mAh
Battery life:About 10 hours
Charging adapter:12V / 1A
OutputsInterface: USB
Switching output: 12 V / 50-mA
Protection class:IP 54
Operating and storage conditions: -10 ... 50°C / 14 ... 122°F; 5 ... 95% rh non-condensing
Force-receiving piece:6 x 7 mm / .2 x .3 in
Dimensions:200 x 97 x 42 mm / 7.9 x 3.8 x 1.7 in
Weight:540 g / 1.2 lbs
Delivery contents

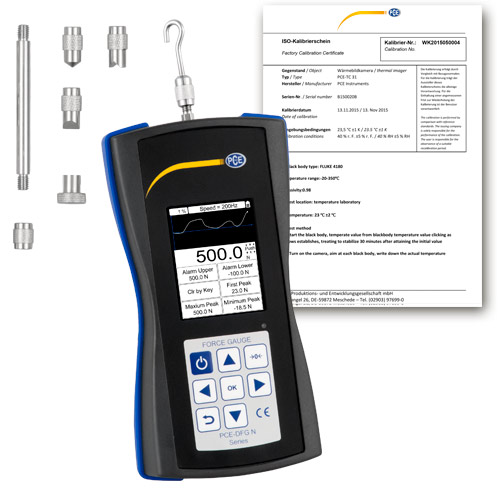

1 x Dynamometer PCE-DFG N 500
1 x Chisel head adapter
1 x Flat head adapter
1 x Pointed head adapter
1 x Hook adapter
1 x Notched head adapter
1 x Extension bar (90 mm / 3.5 in)
1 x PC software
1 x USB data cable
1 x Power supply
1 x Carrying case
1 x Factory calibration certificate
1 x User manual
