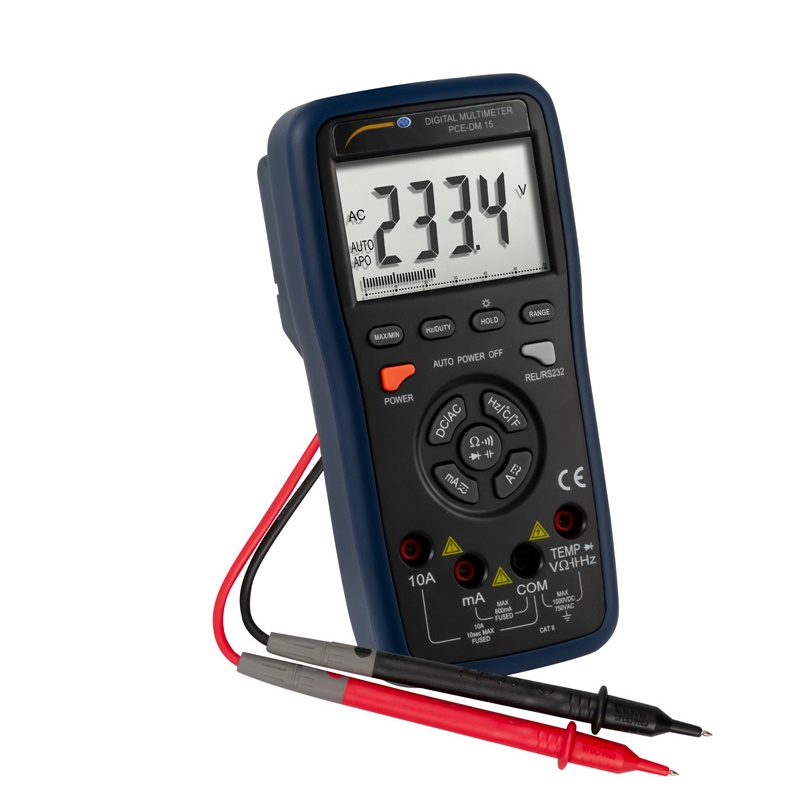

PCE DM 15 Digital Multimeter

Specifications:

DC

Measuring range: 600 mV; 6V; 60V; 600V; 1000V

Resolution: 0.1 mV; 1 mV; 10 mV; 100 mV; 1V

Accuracy: ± (0.5% + 4 digits); ± (0.5% + 4 digits); ± (0.5% + 4 digits); ± (0.5% + 4 digits); ± (1.0% + 4 digits)

Input impedance for the measuring range 600 mV: > 60 MΩ

Input impedance for all other measuring ranges: 10 MΩ

Overload protection: 1000V DC / 750V AC peak value

AC

Measuring range: 6V; 60V; 600V; 750V

Resolution: 1 mV; 10 mV; 100 mV; 1V

Accuracy: ± (0.8% + 10 digits); ± (0.8% + 10 digits); ± (0.8% + 10 digits); ± (1.0% + 6 digits)

Input impedance: 10 MΩ

Overload protection: 1000V DC / 750V AC peak value

Frequency range: 40 ... 400 Hz

Display duty cycle: 0.1 ... 99.9%

Alternating current

Measuring range: 60-mA; 600-mA; 6 A; 10 A

Resolution: 10 µA; 100 µA; 1-mA; 10-mA

Accuracy: ± (1.5% + 10 digits); ± (1.5% + 10 digits); ± (2.5% + 15 digits); ± (2.5% + 15 digits)

Maximum input current: 10 A (for no longer than 10 seconds)

Fuses: 0.6 A / 250V, 10 A / 250V

Frequency range: 40 ... 400 Hz

Display duty cycle: 0.1 ... 99.9%

Resistance

Measuring range: 600 Ω; 6 kΩ; 60 kΩ; 600 kΩ; 6 MΩ; 60 MΩ

Resolution: 0.1 Ω; 1 Ω; 10 Ω; 100 Ω; 1 kΩ; 10 kΩ

Accuracy: ± (0.8% + 5 digits); ± (0.8% + 4 digits); ± (0.8% + 4 digits); ± (0.8% + 4 digits); ± (0.8% + 4 digits); ± (1.2% + 10 digits)

Surge protection: 250V DC / 250V AC peak value

Measuring voltage open circuit: 600 mV

Capacity

Measuring range: 40 nF; 400 nF; 4 µF; 40 µF; 200 µF

Resolution: 10 pF; 100 pF; 1 nF; 10 nF; 100 nF

Accuracy: ± (5.0% + 30 digits);± (3.5% + 8 digits); ± (3.5% + 8 digits); ± (3.5% + 8 digits); ± (5.0% + 10 digits)

Surge protection: 250V DC / 250V AC peak value

Frequency

Measuring range: 10 Hz; 100 Hz; 1000 Hz; 10 kHz; 100 kHz; 1 MHz; 20 MHz

Resolution: 0.01 Hz; 0.1 Hz; 1 Hz; 10 Hz; 100 Hz; 1 kHz; 10 kHz

Accuracy: ± (0.3% + 2 digits); ± (0.3% + 2 digits); ± (0.3% + 2 digits); ± (0.3% + 2 digits); ± (0.3% + 2 digits); ± (0.3% + 2 digits); ± (0.3% + 2 digits)

Input sensitivity: 1.5V

Surge protection: 250V DC / 250V AC peak value

Temperature measurement thermocouple type K

Measuring range: -20 ... 400°C; 400 ... 1000°C; 0 ... 750°C; 750 ... 1832° F

Resolution: 0.1°C; 1°C; 0.1°F; 1°F

Accuracy: ± (1.0% + 50 digits);± (1.5% + 15 digits); ± (1.0% + 50 digits); ± (1.5% + 15 digits)

Diode test

Test current: 1-mA

Test voltage: 3V

Accuracy: -

Surge protection: 250V DC / 250V AC peak value

Continuity test:

Test current: -

Test voltage: 1.2V

Accuracy: -

Surge protection: 250V DC / 250V AC peak value

Beep at < 30 Ω

More specifications

Display: LCD display

Largest display: 5999 3 5/6

Bar graph: Scaled in 61 bars

Measuring rate: 3 measurements per second

Overrange: "OL" is displayed

Data Interface:Mini USB

Battery status indicator: With a total battery voltage of 2.4V

Operating conditions: 0 ... 40°C / 32 ... 104°F

Storage conditions: -10 ... 50°C / 14 ... 122°F, < 80% RH

Power supply: 2 x 1.5V AAA batteries

Dimensions: 185 x 91 x 49 mm / 7.3 x 3.6 x 1.9 in

Weight: Approx. 410 / < 1 lb (with batteries)

Delivery Scope

1 x Digital Multimeter PCE-DM 15

1 x Pair of test leads

1 x Type K thermocouple

2 x 1.5V AAA batteries

1 x Mini USB cable

1 x Software CD

1 x Instruction manual
