Technical specifications
Measurement ranges
DCV: 400 mV; 4/40/400/1000 V
ACV: 400 mV; 4/40/400/750 V
DCA: 400/4000 µA; 40/400 mA; 10 A
ACA: 400/4000 µA; 40/400 mA; 10 A
OHM: 400 Ω; 4/40/400 kΩ; 40 MΩ
Cap.: 4/40/400 nF; 4/ 40/400 µF; 4/40 mF
Freq.: 4/40/400 kHz; 4/40 MHz
RPM: 4/40 kRPM; 4/40/400 MRPM
Temp.: -50 °C to 1000 °C
Resolution
DCV: 0.1 mV; 0.001/0.01/0.1/1 V
ACV: 0.1 mV; 0.001/0.01/0.1/1 V
DCA: 0.1/1 µA; 0.01/0.1 mA; 0.01 A
ACA: 0.1/1 µA; 0.01/0.1 mA; 0.01 A
OHM: 0.1/1/10/100 Ω; 1/10 kΩ
Cap.: 1/10/100 pF; 1/ 10/100 nF; 1/10 µF
Frec.: 1/10/100 Hz; 1/10 kHz
RPM: 0.01/0.1/1/10/100 kRPM
Temp.: 1 °C
Accuracy
DCV: ±0.3% of reading + 2 dgt (up to 400 V); ±0.5% + 3 dgt (above)
ACV: ±0.5% of reading ±0.8% + 5 dgt (above)
DCA: ±0.8% of reading ±1.2% + 5 dgt (above)
OHM: ±0.6% of reading ±1% + 3 dgt (above)
Cap.: ±1.9% of reading + 1 dgt
RPM: ±0.5% of reading + 1 dgt
Temp.: ±1.0% of reading + 2 °C
Rate of measurement2 per second
Warningyes, if it is below x Ω
Diode testtest: good or defective/low conductivity or none
Memoryinternal up to 32,000 readings
InterfaceRS-232
Software and cableboth included, compatible with Windows 95, 98, 2000 and XP
Displaybacklit LCD with 3¾ positions
Power9 V battery
Auto shut-offafter 30 min. of inactivity (can be disabled)
Dimensions198 x 86 x 38 mm
Weight430 g
Operating conditions85% max. relative humidity/0 to 50°C
Ingress protection/StandardIP 65/IEC 1010 - 1, 600 V CAT III
Delivery scope

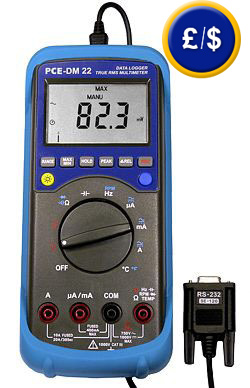

1 x Multimeter PCE-DM 22
1 x test cables
1 x type-K hot-wire temperature sensor
1 x battery
1 x holster
1 x RS-232 cable
1 x software
1 x user manual
