Specification
Dynamometers with internal dynamometric cell:Measuring range / resolution
PCE-FB 50:50 N (5 kg) / 0.01 N (1 g)
PCE-FB 200:200 N (20 kg) / 0.05 N (5 g)
PCE-FB 500:500 N (50 kg) / 0.10 N (10 g)

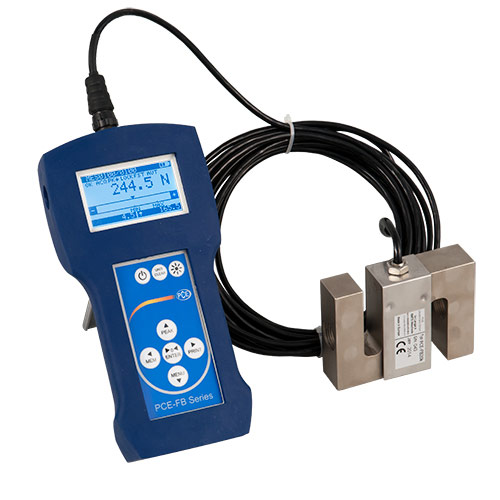

Dynamometers with external dynamometric cell:Measuring range / resolution
PCE-FB 1K:1,000 N (100 kg) / 0.2 N ( 20 g)
PCE-FB 2K:2,000 N (200 kg) / 0.5 N ( 50 g)
PCE-FB 10K:10,000 N (1,000 kg) / 2 N (200 g)
PCE-FB 50K:50,000 N (5,000 kg) / 10 N ( 1 kg)
PCE-FB 100K:100,000 N (10,000 kg) / 20 N ( 2 kg)
PCE-FB 150K:150,000 N (15,000 kg) / 50 N ( 5 kg)
Uncertainty in measurement:±0.1 % of measurement range
Gravity zone:manually adjustable or per GPS data
Measurand:N, g, lb, oz, kg, kgf, lbf, ozf
Calibration:with external F2 weights
Max. overload:+/- 20 % above measuring range
Sampling rate:10 samples / sec. or 40 samples / sec.
Measurement function:Compressive and tensile force measurement / PEAK function (MIN- MAX Hold)/ threshold measurement/ real-time measurement with software
Display:Graphic- Display 61 x 34 mm / automatic Display adjustment / background lights
Menu navigationmultilingual: German, English, Spanish
Data storage facilities:internal storage and Mini SD memory card (Internal storage limited to a max. of 6,400 measurements)
Data storage:manually- by key press; automatically- 0.025 s - 99.9 sec. (adjustable)
Interface:serial RS-232, 9-pole and USB
Software:incl. software via download to evaluate and control
Surrounding conditions:- 10 °C ... +40 °C
Power Supply:4x Ni-MH 2700 mAh AA batteries (replaceable) or via Adapter ~230 V/12 V; 1.2 A incl.
auto OFF function option
Battery life time:approx. 20 hrs. (without background lights approx. 45 hrs.)
Dimensions:210 x 110 x 40 mm
Internal measuring cell: part for force input:11 mm long, M6 x 9 mm winding
Cable length of external dynamometric cell:approx. 3 m
Weight without dynamometric cell:approx. 400 g (without the dynamometric cell)
Delivery contents
1 x dynamometer PCE-FB 100K
1 x dynamometric cell incl. ring screws
1 x AC adapter
1 x RS-232 data cable
2 x carry bag
