Specification
Measuring range:10 Nm (1 kgf-m)
Resolution:0,01 Nm
Measurement uncertainty:±0,5 % from the measuring range
Measuring units:Nm, Ncm, kgfm, lbfin, gfm
max. overload:50 % of the measuring range
Tool intake:with sprocket / keyed chuck up to Ø 13 mm
Measuting rate:Freely adjustable up to 1.000 values / sec.
24 Bit Processor: (16.000.000)
Measuring functions:PEAK Function (MIN - MAX Hold) / limit measurement / real-time measurement with Software
Display:LCD graphic Display 61 x 34 mm / automatic screen orientation / backlight
Menu guide:Multilingual: German / English / Spanish
Memory option:Internal memory and Mini SD memory card (the internal memory is limited to a measuring range of up to 6.400 measurements)
Storagemanual – by pressing a button
automatic - (adjustable)
Interface:Serial RS-232, 9-pin and USB
OPTIONAL: switching contact output
MIN / MAX / OK (see below) + 1 input
Software:incl. downloadable PC Software for evaluation and control
Ambient conditions:- 10 ... +40 °C
Power supply:4x Ni-MH 2700 mAh AA batteries (replaceable) or via AC adapter ~230 V/12 V; 1,2 A incl.
auto OFF function:adjustable
Battery life:Approx. 20 Std. (without lighting approx. 45 Std.)
Dimensions evaluator:210 x 110 x 40 mm / 600 g
Dimensions torque sensor:Ø 50 x 185 mm / 860 g
Cable length to the torque sensor:approx. 2 m
Delivery contents

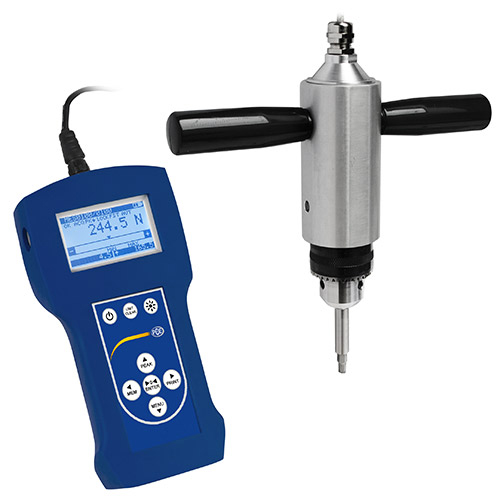

1 x Torque gauge PCE-FB 10TS
1 x external torque sensor
1 x RS-232 data cable
1 x SD Memory Card incl. Reader
4 x AA batteries
1 x AC adapter
1 x Carrying Case
