Specification
Measurement range / resolution: 2 Nm (0.2 kgfm) / 0.001 Nm
Accuracy:±0.5 % of measurement range
Units of measurement:Nm, Ncm, kgfm, lbfin, gfm
Calibration:possible with external F2 weights
Max. Overload:50 % of measurement range
Sampling rate:freely adjustable up to 1,000 values / s
Functions:PEAK function (MIN - MAX Hold) / limit value measurement / real-time measurement with software
Displaygraphical LC display: 61 x 34 mm / automatic display alignment / backlight
Menu:multilingual: German / English / Spanish
Memory:internal memory and mini SD card memory.
(internal memory is limited to a series of measurement of up to 6,400 measurements)
Storage:
manual - by keystroke
automatic - (adjustable)
Interface:serial RS-232, 9-pole and USB
OPTIONAL: switch contact output
MIN / MAX / OK (see below) + 1 input
Software:incl. downloadable PC software for evaluation and control
Operating conditions:- 10 ... +40 °C
Power supply:4 x Ni-MH 2700 mAh AA rechargeable batteries (exchangeable) or mains adaptor ~230 V/12 V; 1.2 A incl.
Auto Power Off function adjustable
Battery life:approx. 20 hours (without backlight approx. 45 h)
Dimensions evaluation unit:210 x 110 x 40 mm / 600 g
Dimensions torque transducer:
up to 10 Nm Ø 90 (Ø 40) / 80 mm / 700 g
above 10 Nm 1500 g Ø 75 / 90 mm / 1500 g
Cable length of external torque measuring cell:approx. 2 m
Delivery contents

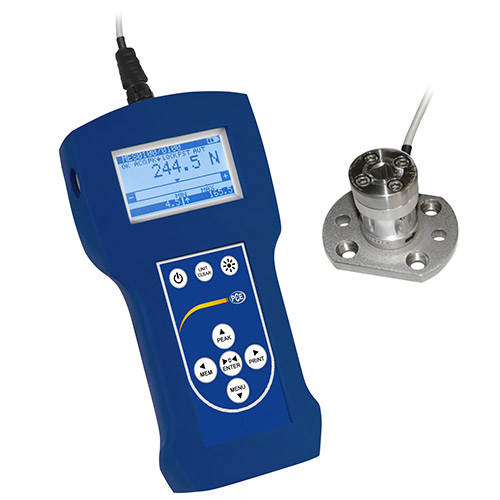

1 x torque wrench tester
1 x external torque sensor
1 x RS-232 data cable
1 x SD Memory Card incl. Reader
4 x AA batteries
1 x mains adaptor
1 x Carrying Case
