Specification
CMOS:1.3 Megapixel
Max. resolution:1280 x 1024
Max. recording rate:2420 FPS
Resolution / recording rate:
1280 x 1024 / 210 FPS
1024 / 1024 / 260 FPS
1024 x 2768 / 346 FPS
640 x 480 / 825 FPS
512 x 512 / 950 FPS
256 x 256 / 2420 FPS
Pixel depth:10 Bit CMOS
Pixel size:4.8 µm per pixel
Memory:Via connected PC
Power supply:Via USB 3.0 Port
Interface:USB 3.0
Trigger:External
Mount and Lens:C-Thread with F=75 mm and f/2.8
Housing material:Aluminium
Dimensions:80 x 74 x 40 mm / 3.1 x 2.9 x 1.6 in
Weight:180 g / < 1 lb (without lens)
Operating Conditions:0 ... 40°C / 32 ... 104°F
Max 80% r.F.
Storage conditions:-20 ... 60°C / -4 ... 140°F
Max. 95% r.F.
Specifications LED lighting of the slow motion camera PCE-HSC 1660
Power:6 x 3W LED
Filter:
5800 K Frost filter
3200K Amber filter
Dimmer function:Yes
Power supply:Main power supply 100 ... 240V AC
Output: 12V / 2 A
Battery pack:7.4V @ 6000-mAh
Battery run-time:Approx. 150 minutes
Delivery contents

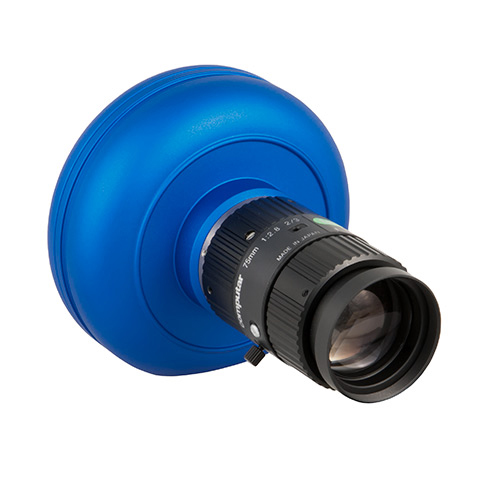

1 x Slow motion camera PCE-HSC 1660, C-Thread with F=75 mm / 3 in and f/2.8 lens
1 x LED light
1 x USB 3.0 cable
1 x Remote trigger mechanism
1 x Carrying case
1 x Software
2 x Mini tripod
1 x User manual
