Specifications
Test range:10 ... 60 MPa or 100 ... 600 kg/cm² / 1450.38 ... 8702.26 psi
Impact energy:2.207 J or N-m / 1.6278 ft-lb
Impact stroke:75 ± 0.3 mm / 2.95 ± 0.012 in
Spring rigidity: 785 J or N-m / 578.99 ft-lb
Average rebound value (for calibration):80 ± 2
Radius of spherical tip:25 ± 1 mm / 0.99 ± 0.04 in
Adhesion of the measurement tip:0.65 ... 0.15 N
Data interface:USB 2.0 port
Data storage or memory capacity:Up to 200 measurement values
Display:LCD, 176 x 220 mm / 6.9 x 8.7 in
Power supply:4 x AAA alkaline batteries
WeightApprox. 1.1 kg / 2.4 lbs
Dimensions:Approx. 54 x 280 mm / 2.13 x 11.02 in
Dilivery Contents

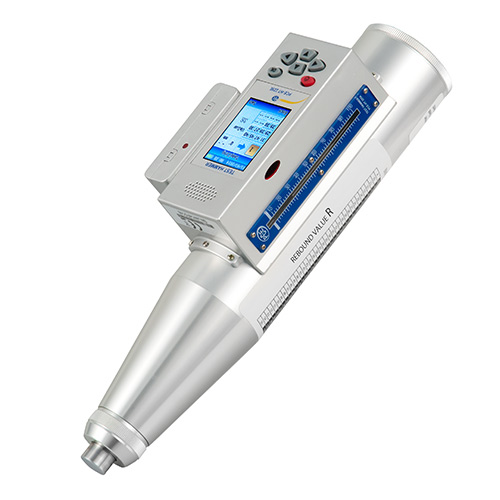

1 x PCE-HT 225E concrete rebound test hammer
1 x USB cable
1 x PC software
1 x Grindstone for rough surfaces
1 x User manual
1 x Carrying case
