Specifications
Current measurement DC A
Measuring range;Resolution;Accuracy (of measurement value)
500 μA;0.01 μA;± (1% + 6 digits)
5000 μA;0.1 μA;± (1% + 6 digits)
50 A;0.01A;± (2.5% + 5 digits)
1000 A;0.1 A;± (2.5% + 30 digits)
Current measurement AC A
Measuring range;Resolution;Accuracy (of measurement value)
500 μA;0.01 μA;± (1.5% + 30 digits)
5000 μA;0.1 μA;± (1.5% + 30 digits)
50 A;0.01A;± (2.5% + 30 digits)
1000 A;0.1 A;± (2.8% + 30 digits)
Resistance measurement
Measuring range;Resolution;Accuracy (of measurement value)
500 Ω;0.01;± (1% + 9 digits)
5 kΩ;0.0001;± (1% + 5 digits)
50 kΩ;0.001;± (1% + 5 digits)
500 kΩ;0.01;± (1% + 5 digits)
5 MΩ;0.0001;± (3% + 10 digits)
50 MΩ;0.001;± (3.5% + 10 digits)
Voltage measurement DC V
Measuring range;Resolution;Accuracy (of measurement value)
500 mV;0.01 mV;± (0.1 % + 8 Digit)
5 V;0.0001 V;± (0.1 % + 4 Digit)
50 V;0.001 V;± (0.1 % + 4 Digit)
500 V;0.01 V;± (0.1 % + 4 Digit)
600 V;0.1 V;± (0.5 % + 4 Digit)
Voltage measurement AC V (50 Hz ... 100 Hz)
Measuring range;Resolution;Accuracy (of measurement value)
500 mV;0.01 mV;± ( 0.8 % + 9 Digit) (at 50 Hz / 60 Hz)
5 V;0.0001 V± (1 % + 30 Digit)
50 V;0.001 V;± (1 % + 30 Digit)
500 V;0.01 V;± (1 % + 30 Digit)
600 V;0.1 V;± (1 % + 30 Digit)
Capacitance measurement
Measuring range;Resolution;Accuracy (of measurement value)
500 nF;0.01;± (3.5% + 40 digits)
5000 nF;0.1;± (3.5% + 10 digits)
50 μF;0.001;± (3.5% + 10 digits)
500 μF;0.01;± (3.5% + 10 digits)
5mF;0.0001;± (5% + 10 digits)
Frequency measurement
Measuring range;Resolution;Accuracy (of measurement value)
50 Hz;0.001± (0.3% + 2 digits)
500 Hz;0.01;± (0.3% + 2 digits)
5 kHz;0.0001;± (0.3% + 2 digits)
50 khz;0.001;± (0.3% + 2 digits)
500 kHz;0.01± (0.3% + 2 digits)
5 Mhz;0.0001;± (0.3% + 2 digits)
10 MHz;0.001;± (0.3% + 2 digits)
Duty cycle
Measuring range;Resolution;Accuracy (of measurement value)
5% ... 95%;0.1; ± (1% + 2 digits)
Pulse width: 100 μs ... 100 ms
Frequency: 10 Hz ... 10 kHz
Temperature
Measuring range;Resolution;Accuracy (of measurement value)
-100 ... 1000°C / -148 ... 1832°F;0.1;± (1% + 2.5°C / 3.5°F)
Conductor diameter:Max. 48 mm / 1.9 in
Display: Two lines 50,000 digits
Continuity test:50 ohms / < 50 mA
Diode test:0.3 mA / 2.8 V DC
Battery indicator:Battery icon when battery low
Overrange:OL, if measuring range exceeded
Sample rate:2 Hz
Peak detection:> 1 ms
Thermocouple:Type K
Fuse:500 mA ceramic quick-acting
AC bandwidth (AC A / AC V):50 Hz ... 400 Hz
AC measurement:True RMS
Operating conditions:5 ... 40°C / 41 ... 104°F, max. 80% RH at 31°C
Storage conditions:-20 ... 60°C / -4 ... 140°F, max. 80% RH
Power supply:9V block battery
Automatic shutdown:After about 30 minutes
Dimensions (W x H x D):230 x 76 x 40 mm / 9 x 3 x 1.6 in
Weight:315 g / < 1 lb
Safety:IEC 1010-1 (2001):
EN 61010-1 (2001)
CAT III 600V
CAT II 1000V Degree of pollution 2
Dilivery Contents

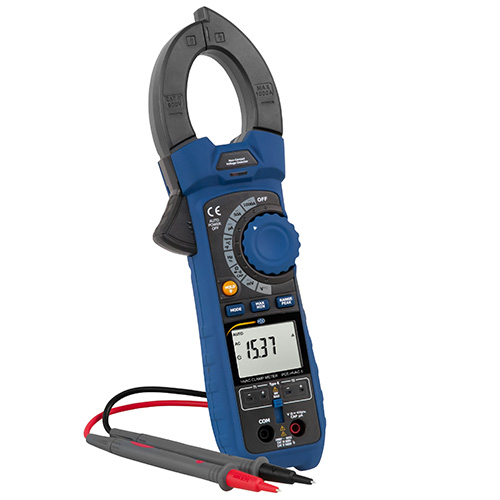

1 x Car measuring device PCE-HVAC 6
1 x Transport bag
2 x Test leads
1 x Battery 9V block battery
