Specifications
Non-contact measurement with infrared sensor
Temperature range:-33 ... 220ºC / -27 ... 428ºF
Resolution:0.2ºC / 0.36ºF
Accuracy:-33 ... 0ºC / -27.4 ... 32ºF: ± 1ºC / 1.8ºF + 0.1 / degree
0 ... 65ºC / 32 ... 149ºF: ± 1ºC / 1.8ºF
65 ... 200ºC / 149 ... 392ºF: ± 1.5% of reading
Response time:< 500 ms
Wavelength:8 ... 14 µm
Emissivity:Adjustable in intervals of 0.1 ... 1.0 (default is 0.95 - ideal for food)
Distance to target ratio:Spot (FOV) = 2.5:1
Minimum diameter of the measurement point:11.5 mm / 0.44 in
Contact measurement with sensor probe
Temperature range:-55 ... 330ºC / -67 ... 626ºF
Resolution:0.2ºC / 0.36ºF
Accuracy:
Below: -5ºC / 23ºF: ± 1ºC / 1.8ºF
Between: -5ºC ... 65ºC / 23 ... 149ºF: ± 0.5ºC / 0.9ºF
Above 65ºC: ± 1.0% of reading
Response time:7 ... 8 seconds
Sensor dimensions:Diameter: 3.2 mm / 0.13 in, Length: 150 mm / 5.91 in
Sensor type:Thermal element (type-K)
Repeatability:Within the accuracy of the device
Functions:Max / Min / Lock
Operating temperature:0 ... 50ºC / 32 ... 122ºF
Dimensions (with battery):190 x 22 x 38 mm / 7.48 x 0.87 x 1.5 in
Power:2 x 1.5V AAA batteries
Operating time: Approx. 40 hours of continuous use
Measurement point illumination:LED
Holding of values on the display:15 seconds
Display:4 positions
Ingress protection rating:IP 65
Dilivery Contents

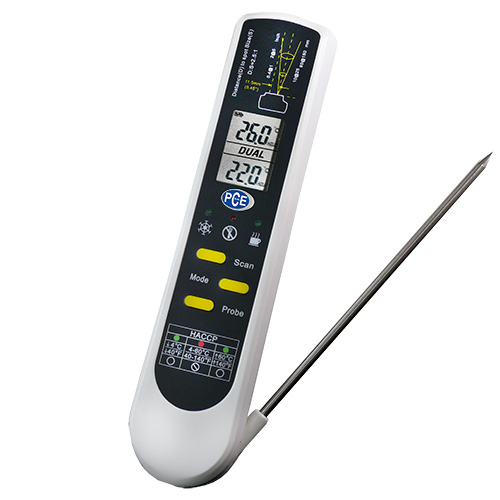

1 x PCE-IR 100 contact / non-contact food thermometer
2 x Batteries
1 x User manual
