Specification
Measurement range (selectable):-20... 1000 °C / -4 ... 1832°F
Accuracy:± 1% of measured value
Emissivity:0.2 ... 1.0 adjustable
Distance-to-target ratio:20:1
Spectral range:8 ... 14 µm
Power supply:24V DC
Impedance:900 Ohm
Interface (selectable):Modbus RTU
Storage rate:1/s ... 1/Tag
Micro SD card:Max. 2 GB (not included in delivery)
Data format:CSV
Dimensions display:96 x 64 x 36 mm / 3.8 x 2.5 x 1.4 in
Dimensions temperature sensor: Ø18 x 45 mm / .7 x 1.8 in
M16
Cable length:1 m / 3.3 ft
Weight:280 g / < 1 lb
Protection class:IP65
Ambient temperature: 0 ... 120°C / 32 ... 248°F
Ambient relative humidity:Max. 95% RH
Delivery contents

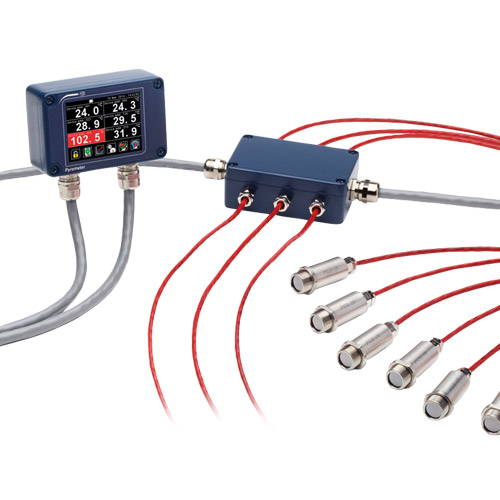

1 x Infrared thermometer PCE-IR 56 incl. selected sensors
1 x Sensor hub (starting from 2 sensors)
1 x User manual
