Specification
Measuring range
AC voltage (40 ... 400 Hz): 750V
Resolution:1V
Accuracy:± 0.8% ± 3 dgt
DC voltage:1000V
Resolution:1V
Accuracy:± 1.2% ± 10 dgt
Resistance:40 Ω / 400 Ω
Resolution:0.01 Ω / 0.1 Ω
Accuracy:± 1.2% ± 3 dgt
Insulation resistance;4 MΩ / 40 MΩ / 400 MΩ / 4000 MΩ
Resolution:0.001 MΩ / 0.01 MΩ / 0.1 MΩ / 1 MΩ
Insulation resistance
125V:
± (2% + 10 dgt) / ± (2% + 10 dgt) /
± (4% + 5 dgt) / ± (5% + 5 dgt)
250V:
± (2% + 10 dgt) / ± (2% + 10 dgt) /
± (3% + 5 dgt) / ± (4% + 5 dgt)
500V:
± (2% + 10 dgt) / ± (2% + 10 dgt) /
± (4% + 5 dgt) / ± (4% + 5 dgt)
1000V:
± (3% + 10 dgt) / ± (2% + 10 dgt) /
± (2% + 5 dgt) / ± (4% + 5 dgt)
Continuity testBeep: ≤ 35 Ω, test current ≤ 200-mA
Equipment supply:6 x 1.5V AA battery
Environmental conditions:0 ... 40°C / 32 ... 104°F, <80% RH (operation) ; -10 ... 60°C / 14 ... 140°F, <70% RH (bearing)
Dimensions:200 x 92 x 50 mm / 7.9 x 3.6 x 2 in
Weight:700 g / 1.5 lbs (with battery)
Standardizations:IEC10101, CAT III 1000V
Delivery contents

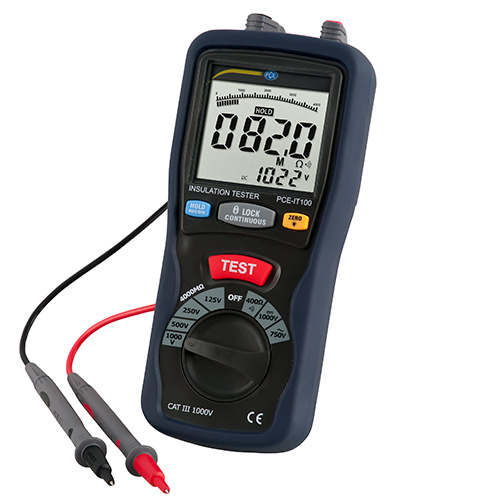

1 x Insulation tester PCE-IT100
1 x Set of test leads
1 x Crocodile clip to 1 m / 3.3 ft cable
6 x 1.5V AA battery
1 x Carrying strap
1 x User manual
1 x Carrying case
