Specification
DC test tension:500 / 1,000 /; 2,500 / 5,000V
Range of measurement:
30 GΩ / 500V
60 GΩ / 1,000V
150 GΩ / 2,500V
300 GΩ / 5,000V
Accuracy:± 3%
Potential output:Maximum of 1 watt
Insulation resistance between electrical conduction and the enclosure:2000 MΩ / 2000V
Static tension between enclosure and circuit:700V AC for a maximum of 1 minute
AC warning circuit:For tension > 450V AC
Power:8 batteries (1.5V)
Dimensions:250 x 110 x 190 mm / 9.8 x 4.3 x 7.5 in
Weight:1.5 kg / 3.3 lbs
Delivery contents

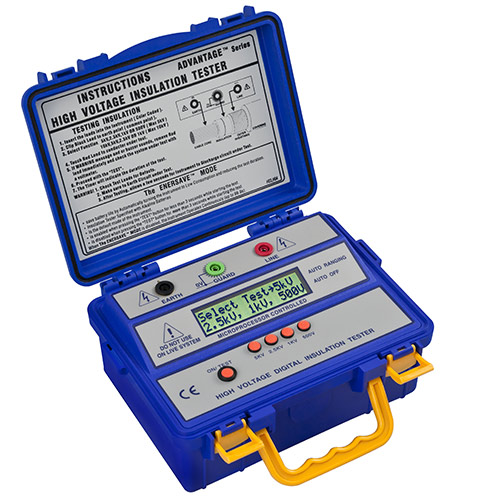

1 x Insulation Meter PCE-IT413
1 x Color coded silicon test cable
1 x Protective cover for coaxial conductors
8 x AAA batteries
1 x User's manual
