Manufacturer: PCE-UK
Model: PCE-P43
Warranty: 12 months
Technical specifications
Measuring size:Measuring RangeAccuracy of Mb.
Alternating current
(L1, L2, L3):1 A AC;
5 A AC± 0.2 %
AC voltage
(L1, L2, L3):2,9 ... 276 V AC (L-N);
10 ... 480 V AC (L-L)± 0.2 %
± 0.5 %
Frequency
(L1, L2, L3):47 ... 63 Hz;±0.1 %
Active power
(L1, L2, L3, ∑):-1.65 ... 1.65 kW;± 0.5 %
Reactive power
(L1, L2, L3, ∑): -1.65 ... 1.65 kvar;± 0.5 %
Apparent power
(L1, L2, L3, ∑):1.4 VA ... 1.65 kVA;± 0.5 %
Tan (phi)
(L1, L2, L3, ∑):-1.2 ... 1.2;± 1 %
Power factor:
(L1, L2, L3, ∑)-1 ... 1;± 0.5 %
Active energy
(created / submitted)
(∑):0 ... 99,999,999.9 kWh;± 0.5 %
Reactive energy
(capacitive / inductive)
(∑):0 ... 99,999,999.9 kvarh;± 0.5 %
THD:0 ... 100 %;± 5 %
Output (numberselectable / max. 4):-20 ... 20 mA
Relay output (numberselectable / max. 4):Turnkey: 250 V / 0.5 A AC
Pulse outputOpen collector, passive,
Meets EN62053-31;
5000 ... 20000 Imp/kWh progammable
Interface:RS485 Modbus RTU 8N1, 8N2, 8E1, 8O1
Programming interface:USB Modbus RTU 8N2
Dimensions:45 x 100 x 120 mm
Weight:300 g
Degree of protection:IP40
Power supply (optional):85 ... 253 V AC / DC;
20 ... 50 V AC / DC
Operating conditions:-10 ... 55 °C;
0 ... 95 % r.F.
Storage conditions:-30 ... 70 °C;
0 ... 95 % r.F.
Measurement category:CAT III / 300 V
Dilivery Contents

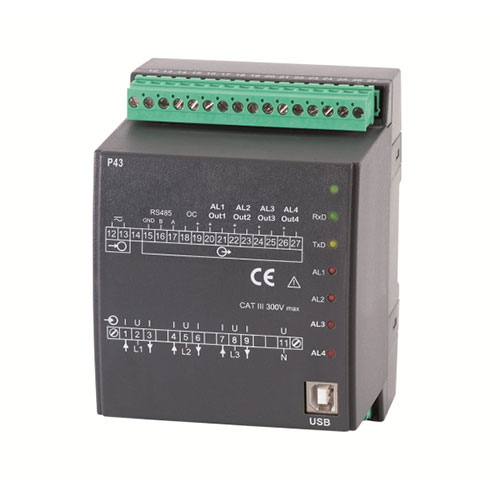

1 x 3-Phase-Power Meter PCE-P43
1 x User manual
