Specifications
Measuring range temperature: 0 ... 50°C / 32 ... 122°F
Resolution:0.1°C / 0.18°F
Accuracy:± 1°C / 1.8°F
Measuring range pressure:± 20 kPa
Resolution:1/ 10 Pa
Accuracy:± 0.5% of final value
Nominal pressure:20 kPa
Overpressure:40 kPa
Burst pressure:100 kPa
Media:Liquids, air
Measuring rate:10 Hz
Measurement units:Pa, hPa, kPa, MPa, mbar, bar, ATM, kg / cm², mmH2O, cmH2O, inH2O, mmHg, inHg, Torr, PSI, PSF
Pressure connections:5 mm nipple for quick connectors
Max, Min and Hold function:Yes
Data logger:1024 memory slots
1 s ... 255 h Recording time per memory location
1 s ... 24h recording interval
Medium:For air and non-explosive gases
Zero correction:Yes, with a zero key
Averaging:Yes, between 0.1 ... 9.9 s
Display:Graphic LCD with backlight
Protection:IP41
Power supply:2 x 1.5V AA battery / 1.2V NiMh battery; 5V / 500-mA USB power adapter
Current consumption:50-mA (with backlight); 10-mA (without backlight)
Operating temperatur:0 ... 50°C / 32 ... 122°F
Storage temperature:10 ... 55°C / 50 ... 131°F
Dimensions:145 x 85 x 35 mm / 5.7 x 3.3 x 1.4 in
Weight:About 285 g / < 1 lb
Dilivery Contents

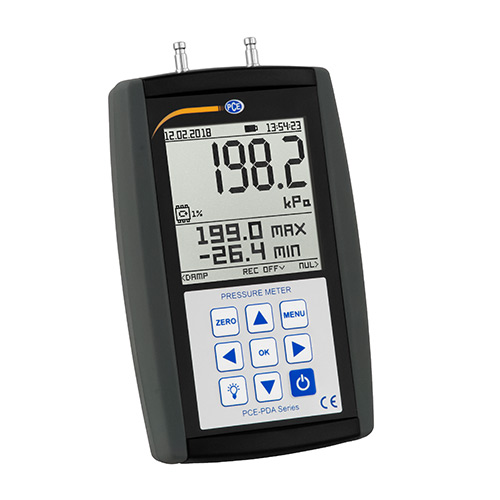

1 x Differential pressure meter PCE-PDA 10L
2 x 1.2V AA NiMh batteries
1 x USB power adapter
1 x Micro USB cable
1 x User manual
