Specification
Measurement geometry:60°
Display:3.5" TFT touchscreen display
Standards:
ISO 2813
GB/T 9754
ASTM D 523
ASTM D 2457
Measuring surface:9x15 mm / .4 x .6 in
Measuring range:0 ... 300 GU
Readability:0.1 GU
Repeatability:
Meas. range 0 ... 10 GU: ±0.1 GU
Meas. range 10 ... 100 GU: ±0.2 GU
Meas. range 100 ... 300 GU: ±0.2 GU (%)
Reproducibility:
Meas. range: 0 ... 10 GU: ±0.2 GU
Meas. range: 10 ... 100 GU: ±0.5 GU
Meas. range: 100 ... 300 GU: ±0.5 GU (%)
Chromaticity:Fulfils CIE 1931(2°) under a CIE C – light source
Measurement accuracy:±1.5 / ±1.5%
Measuring time:0.5 second
Dimensions:160 x 75 x 90 mm / 6.3 x 3 x 3.5 in
Weight:350 g / < 1 lb
Menu language:English, Chinese
Power supply:3200-mAh Li-ion rechargeable battery
Interface:USB / RS-232
Measuring storage:Baseline measurement: 1000
Software:Included
Operating temperature:0 ... 40 °C / 32 ... 104°F
Storage temperature:-20 ... 50 °C / -4 ... 122°F
Relative humidity:<85% rel. humidity (non-condensing)
Delivery contents

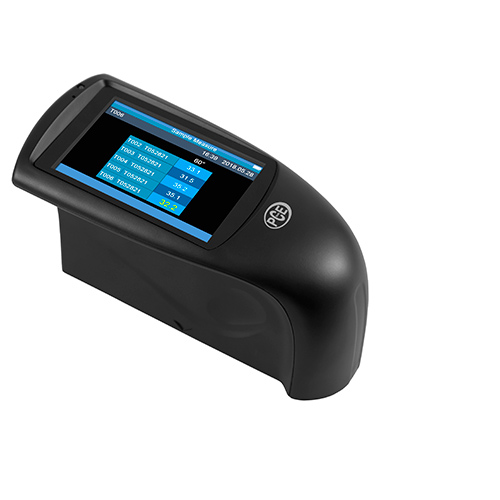

1 x Glossmeter PCE-PGM 60
1 x Rechargeable lithium-ion battery
1 x Charging adaptor
1 x USB cable
1 x Calibration plate
1 x Evaluation software (on a CD-ROM)
1 x Instruction manual
