Specification
Measurement parameters:Ra, Rq, Rsm, Rsk, Rz, Rt, Rp, Rv, Rc
Measuring ranges:
Ra, Rq, Rc: 0.005 μm ... 16 μm
Rz, Rt, Rp, Rv: 0.02 μm ... 200 μm
Rsm: 5 μm ... 1000 μm
Rsk: -1 ... 1
Radius stylus tip:5 μm
Material stylus tip:Diamond, 90° angled
Max. Recommended force for static measurement: 4 mN (0.4 gf)
Measuring principle:Inductive
Radius longitudinal guide bar:45 mm / 1.8 in
Maximum driving distance:15 mm / 0.6 in
Cut-off wavelength (cut off):0.135 mm / s at cut-off wavelength: 0.25 mm
0.5 mm / s at cut-off wavelength: 0.8 mm
1 mm / s at cut-off wavelength: 2.5 mm
Reversing speed: 1 mm / s
Measurement accuracy:<± 10%
Repeatability:<6%
Display:OLED
Units:μm / μinch (switchable)
Interface: Micro USB
Power supply:Rechargeable Li-ion battery
Delivery contents

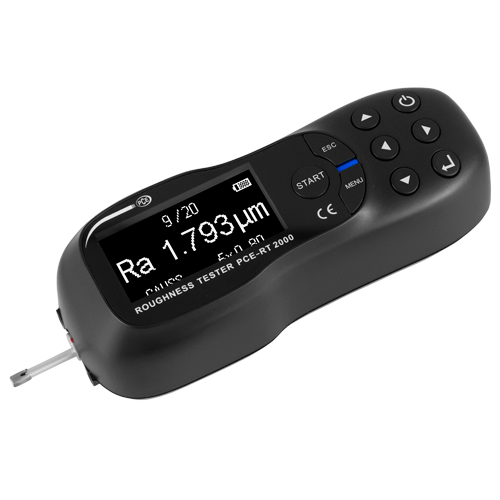

1 x Roughness tester PCE-RT 2000
1 x Microprobe
1 x Protective cap for buttons
1 x Clamping device
1 x Software
1 x Calibration plate
1 x Roughness standard
1 x USB cable
1 x Charging adapter
1 x Transport case
1 x User manual
