Specification
Rotational speed: 62.5 rpm
Torque range: Rotational viscometer (RV)
Viscosity range
Millipascal-second (mPa.s) / equivalent to centipoise (cP):
R3 = 30 ... 13,000 mPa.s; R1 = 300 ... 15,000 mPa.s; R2 = 10,000 - 400,000 ... mPa.s
Decipascal-second (dPa.s):
R3 = 0.3 ... 13 dPa.s; R1 = 3 ... 150 dPa.s; R2 = 100 ... 4000 dPa.s
Accuracy:± 2% full scale (FS)
Repeatability:± 1%
Power supply:4 x AA LR6 or R6 batteries (6 V)
Battery life:Up to 30 hours of continuous operation
Operating temperature:+10 ... +40 ° C / +50 … 104 ° F
Relative humidity:< 80%, non-condensing
Maximum altitude:2,000 m / 6,561 ft above mean sea level
Approx. dimensions:170 x 110 x 410 mm / 6.7 x 4.3 x 16.1 in
Approx. weight:1.8 kg / 4.0 lbs
Protection class:IP20
Delivery contents

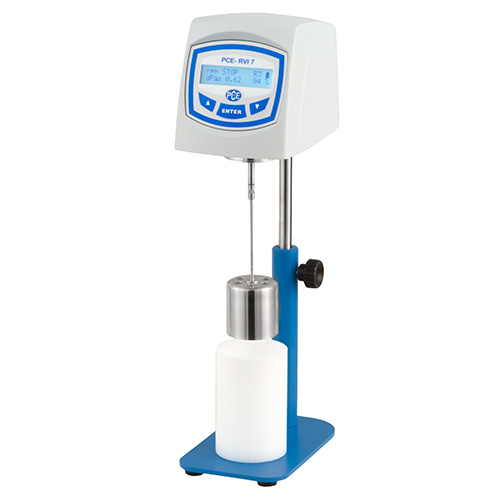

1 x PCE-RVI 7 VP60 viscometer / viscosity meter
1 x Set of x 3 spindles: R1, R2 and R3
1 x Spindle protector
1 x Measuring vessel (no. 3; 170 ml / 5.75 oz capacity)
4 x AA batteries
1 x Manufacturer calibration certificate
1 x Carrying case
1 x User manual
