Specification
Measurement Geometry: 60°
Display: 3.5 in TFT touch display
Standards
ISO 2813
GB/T 9754
ASTM D 523
ASTM D 2457
Measuring Area: 1.5mm x 2 mm / 0.06in x 0.07 in
Measuring Range: 0 ... 1000 GU
Readability: 0.1 GU
Repeatability
Measuring range: 0 ... 10 GU: ±0.1 GU
Measuring range: 10 ... 100 GU: ±0.2 GU
Measuring range: 100 ... 1000 GU: ±0.2 GU (%)
Reproducibility
Measuring range: 0 ... 10 GU: ±0.2 GU
Measuring range: 10 ... 100 GU: ±0.5 GU
Measuring range: 10 ... 1000 GU: ±0.5 GU (%)
Chromaticity: Corresponds to CIE 1931 (2 °) under a CIE C - light source
Measurement Accuracy: ±1.5 / ±1.5%
Measuring Time: 0.5 seconds
Dimensions: 160 x 75 x 90 mm / 6.3 x 3 x 3.5 in
Weight: 350 g / < 1 lb
Menu Language: English, Chinese
Power Supply: 3200-mAh Li-ion battery
Interface: USB / RS-232
Measurement Memory
Basic measurement: 1000
Statistical mode: 5000
Continuous measurement: 5000
Software: included
Ambient Temperature: 0 ... +40° C / 32 ... 104° F
Storage Temperature: -20 ... +50° C / -4 ... 122° F
Relative Humidity: < 85% rel. Humidity (non-condensing)
Delivery contents

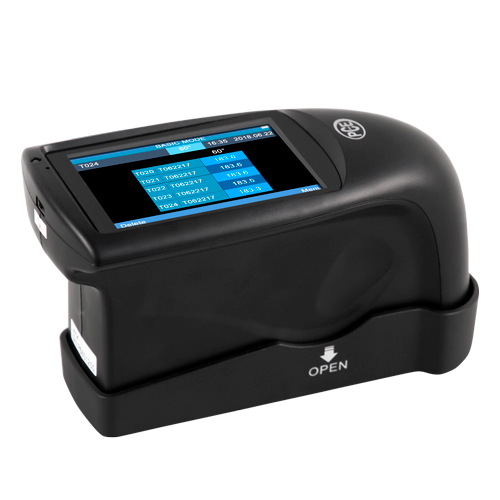

1 x Gloss Meter PCE-SGM 60
1 x Charger
1 x USB cable
1 x Analysis software (on CD-ROM)
1 x Calibration plate
1 x User Manual
