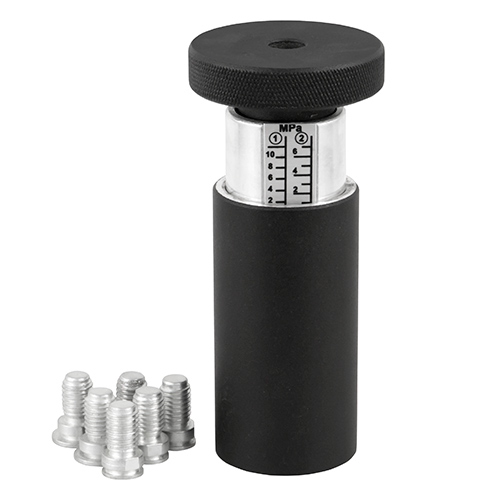

PCE TAT 10 Adhesion Tester

Specification

Breakout force:200 kg

Diameter of base dolly, mm:15.1 (№ 1) and 19.5 (№ 2)

Specific breakout force, MPa:Dolly №1 up to 10 MPa (100); Dolly №2 up to 6 MPa (60)

Scale, MPa:1 (№ 1) and 2 (№ 2)

Weight of adhesion tester, kg, no more1

Dimensions of adhesion tester, mm:150×70

Dimensions of package, mm:L180*W150*H100

Dilivery Contents

1 x Adhesion tester PCE-TAT 10

1 x Dollies: № 1 – 3 pcs., № 2 – 3 pcs.

1 x Ballerina (cutter) for cutting the area of testing

1 x Two-component epoxy adhesive

1 x CA glue

1 x Operating manual

1 x Case
