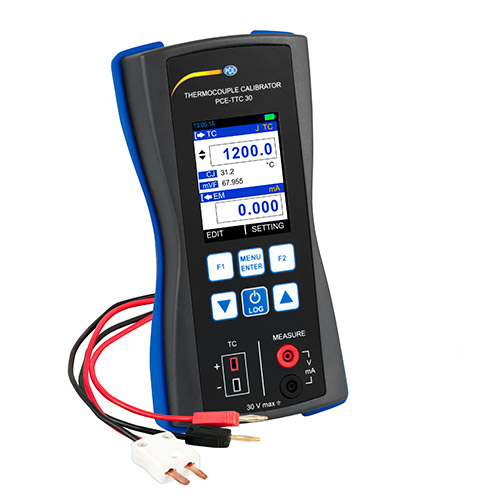

PCE TTC 30 Thermocouple Calibrator

Specification

Voltage DC V

Measuring range;Resolution;Accuracy

0 ... 30V;0.001V;± 0.02% v.Mw. + 2 Dgt

Current DC mA

Measuring range;Resolution;Accuracy

0 ... 24-mA;0.001-mA;± 0.02% v.Mw. + 2 Dgt

Measurement / Simulation

Thermocouples; Measuring range; Resolution; Accuracy

e; -200 ... 1200°C / -328 ... 2192°F; 0.1°C / 0.18°F;

± 0.3°C / 0.54°F

J; -200 ... 1200°C / -328 ... 2192°F; 0.1°C / 0.18°F; ± 0.3°C / 0.54°F

K; -200 ... 1372°C / -328 ... 2501°F; 0.1°C / 0.18°F; ± 0.3°C / 0.54°F

T; -200 ... 400°C / -328 ... 752°F; 0.1°C / 0.18°F; ± 0.3°C / 0.54°F

B; 450 ... 1800°C / 842 ... 3272°F; 0.1°C / 0.18°F; ± 0.3°C / 0.54°F

R; 0 ... 1750°C / 32 ... 3182°F; 0.1°C / 0.18°F; ± 0.3°C / 0.54°F

S; 0 ... 1750°C / 32 ... 3182°F; 0.1°C / 0.18°F; ± 0.3°C / 0.54°F

N; -200 ... 1300°C / -328 ... 2372°F; 0.1°C / 0.18°F; ± 0.3°C / 0.54°F

mV; 10 ... 80 mV; 0.001 mV; ± 0.02% of the displayed value + 2μV

-10 ... 250 mV; 0.01 mV; ± 0.02% of reading + 0.02 mV

General specifications

Display modes:Measurement: mA / V / thermocouple / mV

Simulation: thermocouple / mV

temperature units:°C / °F / K

Cold junction compensation error:≤ ± 0.5°C / 0.9°F

Maximum input voltage:30V DC

Temperature coefficient:<30 ppm

Input impedance measurement:Thermocouple / mV / V:> 1 MΩ

Current measurement: 10 Ω

Response time:<100 ms

Impedance:> 4,7 kΩ with thermocouple / mV

Refresh rate display:10 Hz

Isolation:500V DC

Data storage:Internal memory 150000 readings

Interface:USB 2.0

Display:2.4" TFT LCD ; 240 x 320 pixels

LED illuminated

Output voltage current loop:24V DC / 24mA

HART mA loop resistance:250 Ω ± 20%

Special features:

Step and ramp function; Automatic and manual

mode √x, x2: For the measuring function

Continuity test:Adjustable threshold up to 100 Ω

Power supply:3.7V / 2300mAh Li-ion battery

Charging timeabout 5 h

Power adapter:Input: 100 ... 240V AC / 50/60 Hz ; Output: 5V / 1 A DC

Battery life:Approx. 15 h: Simulation and measurement with low LCD illumination

Approx. 8 h: Measurement with low LCD illumination

Dimensions:162 x 82 x 40 mm

Weight:About 300 g / < 1 lb

Degree of protection:IP20

Operating conditions:Battery operation: 0 ... 55°C / 32 ... 131°F, 30 ... 90% RH Main operation: 0 ... 45°C / 32 ... 113, 30 ... 90% RH

Storage conditions:-20 .. 60°C / -4 ... 140°F, 30 ... 90% rh non-condensing

Heating time:About 15 minutes

Delivery contents

1 x Process Calibrator PCE-TTC 30

2 x Laboratory cables with 2 mm plug

1 x Thermocouple adapter to 2 mm plug

2 x Adapter 2 mm on 4 mm laboratory cable

2 x Alligator clips

1 x Mini USB cable

1 x Power supply 5 V / 1 A

1 x Carrying bag

1 x Software

1 x User manual
