Specification
Measurement range PCE-TTM 2:2 Nm / 200 Ncm / 200 gfm / 20 lbfin
Resolution PCE-TTM 2:0.001 Nm / 0.1 Ncm / 0.1 gfm / 0.01 lbfin
Accuracy:± 0.5 % F.S
Sampling rate / sampling speedUp to 1,000 Hz adjustable
Measurement direction:left or right rotational direction
Sample size:Ø 20 mm ... Ø 180 mm
Sample holder:rubberized, can be switched without any additional tools
Additional function:
Peak-Hold function (maximum value displayed)
Threshold function (min. / OK / max.)
internal memory (manual or automatic)
Statistics function (graphic or tabular)
GLP protocol printing (printer optional)
multilingual menu navigation (DE / GB / ES / PL)
Internal memory:For a test series of up to 6,400 measurement values at a push of a button or automatic recording of measurement values with configurable parameters.
Measurement unit:Nm / Ncm / kgfm / gfm / lbfin
Overload protection:max. 125 %
Output:RS 232 and USB interface
Software:software for live recording included
Display:LCD graphic display
Operation temperature:0 ... + 50 °C, under 80 % r.F.
Power Supply:12 V / 1.25 A mains adapter or 4 x 1.5 V AA batteries (not included in delivery)
Weight:approx. 4.5 kg
Dimensions:345 x 236 x 160 mm
Delivery contents

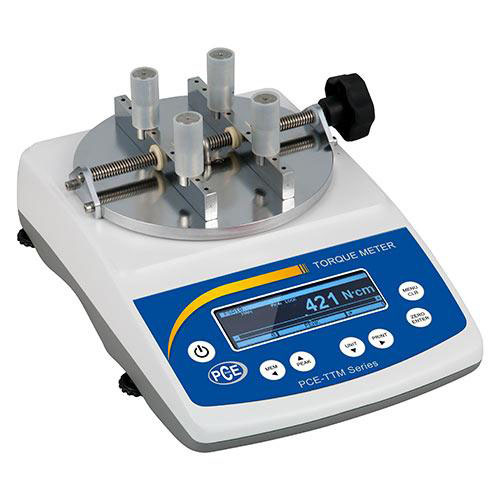

1 x screw cap torque meter,
1 x software,
1 x adapter,
1 x instruction manual
