Specification
Frequency (Hz):15.92;40;80;159.2;320; 640; 1280
Acceleration RMS (m/s²): 1,2; 1,2,5; 1,2,5,10; 1,2,5,10,20; 1,2,5,10,20; 1,2,5,10,20; 1,2,5,10,20
Velocity RMS (mm/s): 10, 20;-;-; 1,2,5,10,20;-;-;-
Displacement RMS (µm): 100,200;-;-;1,2,5,10,20;-;-;-
Max. sensor weight (g), depending on acceleration
at 1 m/s²:-;500;500;500;500;500;500;500
at 2 m/s²:-;500;500;500; 500;500;500;500
at 5 m/s²:-;-;500;500;500;500;500;500
at 10 m/s²:600;-;-;500;500;500;400;200;
at 20 m/s²;-;-;-;-;250;200;100;50
Amplitude accuracy:
± 3 % (0 ... 40 °C / 32 ... 100 °F)
± 5 % (-10 ... 55 °C / 14 ... 130 °F)
Frequency accuracy:± 0.05 %
Settling time:< 10 seconds
Level indication:Error percentage (%) display, above ± 3 % audible alert
Max. weight of test object for stated accuracy:600 g / 1.32 lb
Dynamic force of vibration exciter:10 N
Max. tightening torque of vibration exciter:2 Nm
Operating humidity range:< 90 % at 30 °C / 86 °F, non-condensing
Power supply:Built-in NiMH rechargeable battery, 7.2 V / 1.6 Ah
Max. operating hours with rechargeable battery:Approx. 5 hours at a weight of 100 g / 0.22 lb
Charging time:Approx. 4 hours
Charging status:Bar indicator
Automatic power off:10 minutes / 1 ... 30 minutes adjustable
Stray magnetic field at the vibration head:< 0.2 mT
Dimensions (L x W x H):Approx. 100 x 100 x 120 mm / 3.9 x 3.9 x 4.7"
Weight:Approx. 2200 g / 4.9 lbs
Delivery contents

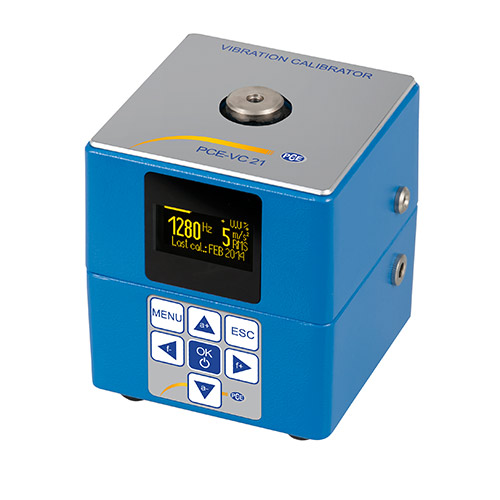

1 x PCE-VC21 vibration analyzer calibrator
1 x thread adapter (M3, M5, M8, 1/4"-28, UNF 10-32)
1 x battery-charging power adapter (100 ... 240 V AC; 50 / 60 Hz)
1 x factory calibration certificate
1 x user manual
1 x carrying case
