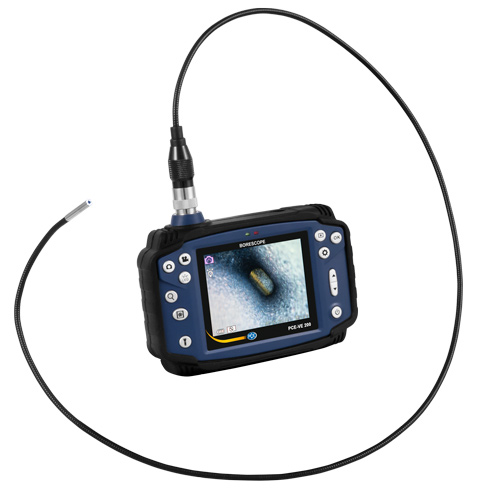

PCE VE 200-S3 Automotive Tester / Borescope

Specifications

Display: LCD, 3.5"

Resolution: 1600 x 1200 pixels JPEG image / 640 x 480 pixels AVI video

Screen rotation: 180°

Freeze functionality: Yes

Zoom: Up to 4 times digital image magnification

Menu languages: English, Spanish, French, German, Russian, Japanese, Simplified Chinese, Traditional Chinese

Cable diameter: 3.7 mm / 0.14 in cable diameter

Cable length: 3 m / 9.8 ft

Cable rigidity: Semi-flexible (semi-rigid spiral)

Image sensor: CMOS chip

Lighting: 6 white LEDs (adjustable intensity)

Field of view / angle / perspective: 90°

Sight depth: 15 ... 100 mm / 0.59 ... 3.94 in

Storage medium: Micro SD card

Interfaces: Micro USB 2.0, TV output (PAL), Micro SD card slot

Power supply: Rechargeable 18650 Li-ion battery

Battery capacity: 2600 mAh

Battery life: Up to 5 hours from full charge

Operating conditions

Main unit and probe, in air: -10 ... 50°C / 14 ... 122°F, rel. humidity 15 ... 90%

Probe, in water: 5 ... 50°C / 41... 122°F

Dilivery Contents

1 x PCE-VE 200-S3 Automotive Tester / Borescope

1 x Wall charger with detachable USB to Micro USB cable

1 x Video output cable

1 x User manual
