Specifications
Measuring range: 0.1 ... 1000 m/s² acceleration
Frequency dependent velocity: 2 ... 1000 or 20 ... 10,000 Hz / 360 lines frequency domain
Monitoring values:
Peak value of vibration acceleration or vibration velocity
RMS value of vibration acceleration or vibration velocity
Frequency domain (FFT)
High pass filter:0.1 / 2 / 5 / 10 / 20 / 50 / 100 / 200 / 500 / 1000 Hz acceleration
2 / 5 / 10 / 20 / 50 Hz velocity
Low pass filter:0.1 / 0.2 / 0.5 / 1 / 2 / 5 / 10 kHz acceleration
1 kHz velocity
FFT limits: 10 freely selectable frequency intervals with limit amplitudes
Relay output:PhotoMOS relay; SPST
Max. 60 V / 0.5 A (AC/DC)
Open/close programmable
Connection via 8-pin female connector 711
Teach-in function Warning / alarm:
Button for measuring the switching threshold; No
Interfaces:USB 2.0 full speed for parameterization and measurement
CDC mode / virtual COM port
8-pin female connector 711
External USB port: Yes
Power supply voltage:
5 ... 30 V DC
5 V DC USB
< 100 mA screw terminals
Ingress protection:IP67 rating
Operating temp. range:-40 ... +80 °C / -40 ... +176 °F
Approx. weight125 g / 0.28 lb
Approx. dimensions50 mm / 1.97" Ø
36 mm / 1.42" height
Mounting:M8 thread pin; 8 mm / ≈ 0.32" length; 25 mm / ≈ 0.99" Ø coupling surface
Dilivery Contents

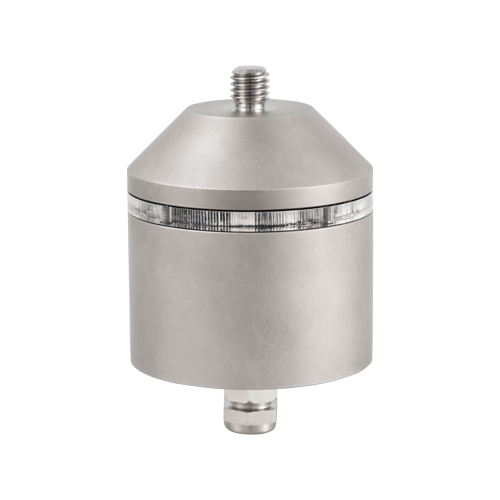

1 x PCE-VS12 condition monitoring vibration sensor switch
1 x USB cable
1 x PC-compatible software
1 x user manual
