Specification
Parameter:Measuring Range;Frequency Range
Acceleration:0.01 ... 199.9 m/s² peak;10 Hz ... 1 kHz
Vibration speed:0.01 ... 199.9 mm/s rms;10 Hz ... 1 kHz
Displacement:0.001 ... 1.999 mm p-p;10 ... 500 Hz
Measurement accuracy:
Acceleration: ≤ 3 %
Vibration speed: ±5 %, ±2 Digits
Displacement: +10/-20 % (10...20 Hz); ±5 % (20...1000 HZ)
Display:LCD, Response time approx. 1 second
Power supply:2 x 6 V CR2032 button cell
Battery life:about 5 hours (in continuous operation)
Environmental conditions:0 ... +40 °C / 32 ... 104°F, 0 ... 84 % r.H.
Dimensions:155 x 24 x 18.7 mm / 6.1 x 0.9 x 0.7"
Weight:ca. 40 g (incl. batteries) / 1.4 oz
Dilivery Contents

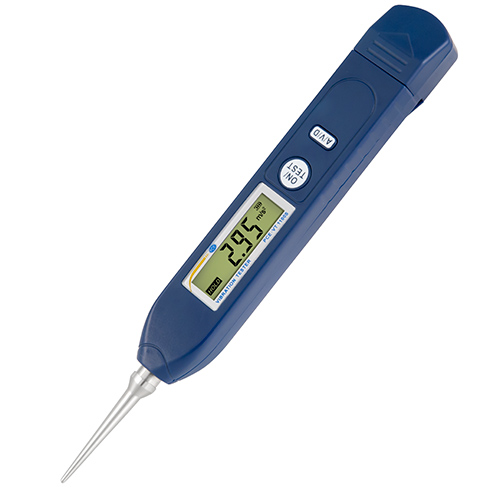

1 x Accelerometer PCE-VT 1100S
1 x PCE-VT-NF-45 needle probe (length 45mm / 1.77")
2 x Batteries
1 x Carrying case
1 x Storage box
1 x User manual
