Specifications
Inputs:2 x digital inputs; 1 x analogue input; 1 x NTC input for external temperature sensors
Interface:RS-232
Sampling interval:1 min or 10 min
Memory:microSD card (FAT32), max. 2 GB
Data format:CSV file, ASCII format
Recorded parameters:average values, min/max values and standard deviations (with date and time stamp)
Power supply:2 x 1.5 V type C batteries
Battey life:up to 1 year (with 1 min sampling interval); up to 3 years (with 10 min sampling interval)
Housing:robust plastic housing
Protection class:IP65
Dimensions:160 x 80 x 55 mm
Weight:450 g
Wind energy sensor
Wind energy- velocity sensor
Measuring range:1 ... 40 m/s
Sensor:2 reed contacts (zero potential)
Output:impulses zero potential
Resolution:2.3 Hz/ms-1
Maximum applied load:10 VA, 0.5 A, 42 VDC
Wind energy wind direction sensor
Measuring range:2.5 ... 357.5 º
Sensor:0 ... 1 KΩ
Neutral position:5 º open to north
Wind energy sensor general technical data
Dimensions:418 x 30 mm
Mast support:31 x 26 mm
Protection standard:IP54
Weight:1 kg
Delivery contents

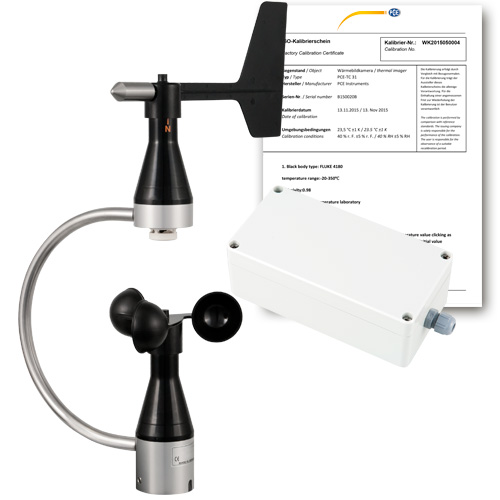

1 x PCE-WL 2 Air Velocity Meter
1 x wind speed sensor
1 x wind direction sensor
1 x 512 MB SD memory card
2 x battery
1 x user manual
1 x ISO Calibration Certificate
