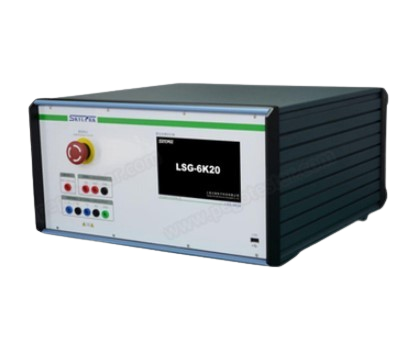

PEGO LSG-6K20 Combination Wave Surge Generator (10μs ±30%, 700μs ±20%)

Storage capacitor: 20μF ±10%

Open circuit output voltage: 0.2－6kV ±5%

Front time: 10μs ±30%

Time to half-value: 700μs ±20%

Short circuit output current: Max 150A ±5% (impedance 40Ω）

Front time: 5μs ±30%

Time to half-value: 320μs ±20%

Output polarity: Positive, negative, positive/negative automatically

Output impedance: 15Ω ±10%, 40Ω ±10%

Trigger mode: Auto or manual, single

Number of surges: 1-99 times

Programmable test program: Built-in IEC standards and user-define, with 1000 groups memories

Surge interval: 20-9999s

Built-in network capacity: DC50V, 0.1A

Network Coupling mode: L-N (T1+R1+T2+R2-GND)

Network coupling device: Each line 100Ω+90V gas discharge tube

Working environment: Temperature: 15°C－35°C Relative humidity: 10%－75%

Power supply: AC220±10%, 50/60Hz, 300W

Dimension: 470mm×260mm×500mm (W*H*D)

Weight: About 30kg

LSG-6K20 combination wave surge generator is completely designed according to IEC61000-4-5 and GB/T17626.5. The 10/700μs combination wave generator is used to test ports intended for connection to symmetrical communication lines. It is widely used in the fields of industry control equipment, house-holding appliance,medical electronics, communications electronics, components, auto control equipment and etc.

Lightning surge generator is to simulate the surge voltage caused by switching transient and lightning transient, the surge test is to found out the surge voltage effect to EUT in normal working condition.

The lightning surge generator can generates both 10/700μs, 5/320μs combination wave. The test voltage is up to 6KV, user can choose and define the test levels, built-in network with capacity 50V/0.1A (DC). The parameters of open-circuit voltage waveform and short-circuit current waveform are strictly meet the standard requirements of IEC61000-4-5 and IEC60061-1.
