Spectrum: 230nm–850nm
Illuminance: 5–200000lx
Spectrum width (FWHM): 2nm
Color temperature: 1000–100000K
Spectrum resolution: 0.2nm
Sensor: CCD
Sensor array points: 3648
Zero mode: Auto zeroing
Integral time: 50us–20000ms
X,Y accuracy: ±0.001| At condition of luminaire A,
2856K, 10000LX
X,Y repeatability: ±0.0005| At condition of
luminaire A, 2856K, 10000LX
Illuminance accuracy: ±4%| At condition of
luminaire A, 2856K, 10000LX
Rendering accuracy: ±1.5%| At condition of
luminaire A, 2856K, 10000LX
Wavelength accuracy: ±0.5nm
LCD screen: 5 inches, IPS touch screen
Wavelength interval: 1nm
Detector port: Ø10mm
Test energy: 0–999999mJ/cm²
Resolution: 480*854
Energy accuracy: ±10%
Test mode: Single/continuous
AD resolution: 16 bits, 250KSPS
Exposure mode: Auto/manual
Language: Chinese/English
Spectrum display
6 parameters for option to display
Spectrum curve
File save: 8GB SD card
Data output connector: SD Card/USB2.0
Data display: Up and down scroll to display all the
data
Dimension (LWH): 163x81x25.8mm
Diagram display
CIE1931 chromaticity diagram
CIE1960 chromaticity diagram
CIE1976 chromaticity diagram
SDCM diagram
CRI circular diagram
CRI histogram
Weight: 500g
Operation temperature: 0~35°C
Storage temperature: -10~40°C
Continuous working hours: >10 hours
Battery capacity: 4000mAh
Structure: Aluminum alloy

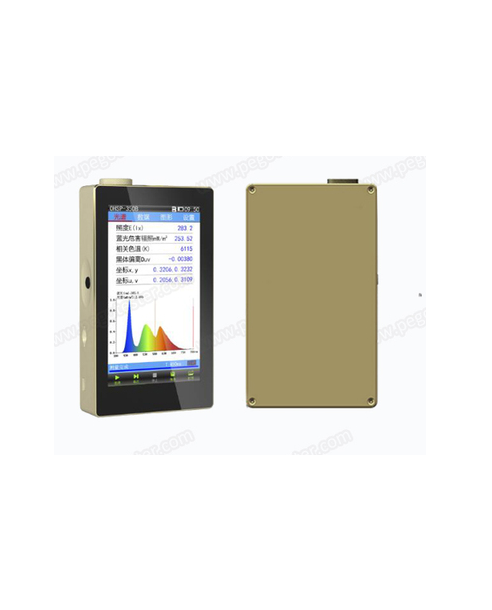

The UV spectral irradiance colorimeter can test the UV mercury lamp, UV LED lamp at the wavelength range of 230nm to 850nm. The equipment has the configuration of CCD sensor, 5 inch LCD touch screen, 4000mAh Li-battery and 8GB SD card. With small size of 163mm*81mm*25.8mm can realize the field test for illuminance and irradiance.
